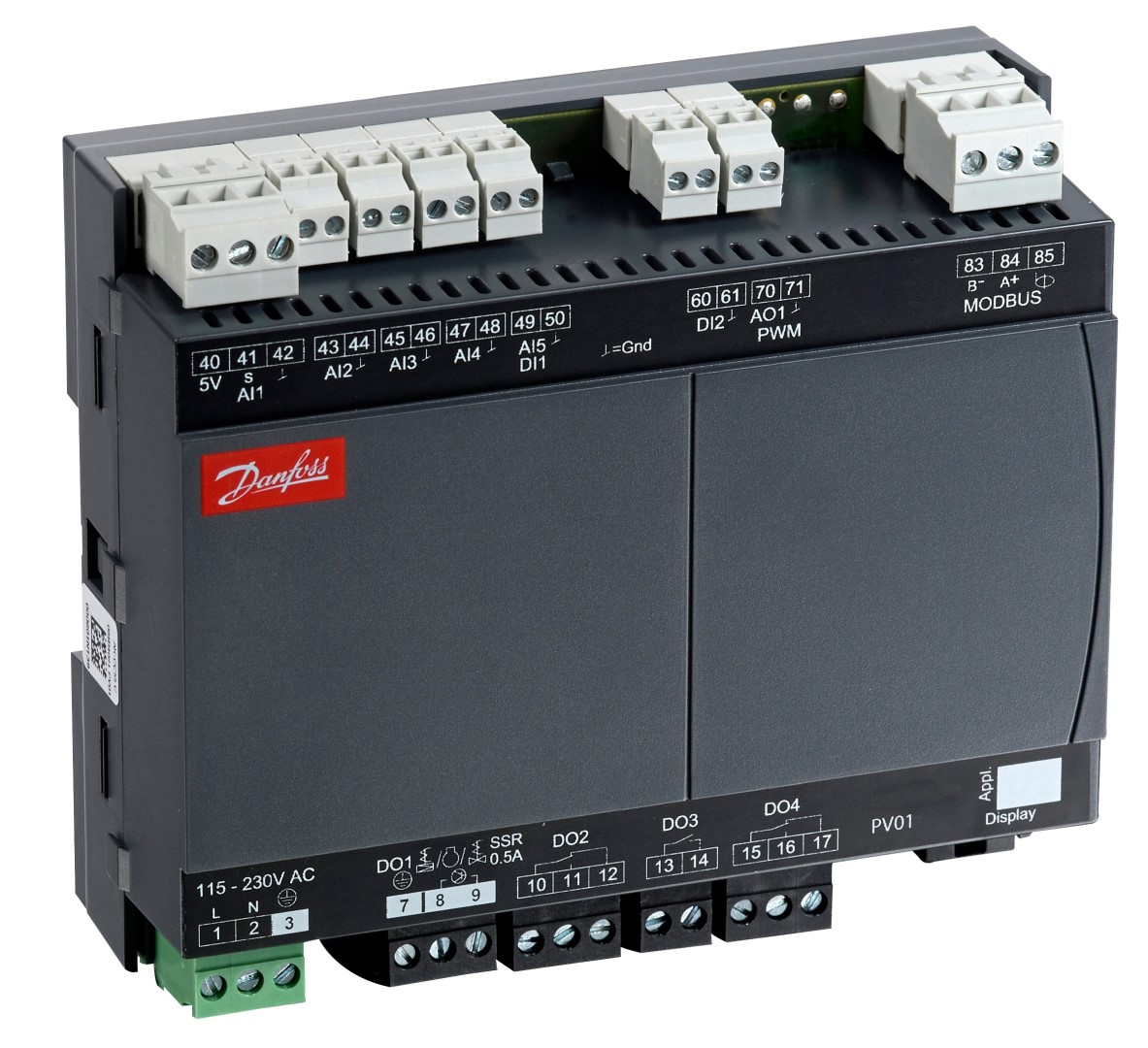

Enclosure / room controller (EEV), AK-CC55 Compact without display
For control of up to 2 compressors, active defrost, 4 output relays, widely customizable by parameters
On request
- Suitable for refrigerated furniture in supermarkets and similar applications
- For controlling one or two compressors
- input for NTC-M2020 (5k? / 25°C) or PTC or Pt1000
- 4 output relays for compressors, defrost, fan, alarm, lighting, defogging
- two auxiliary digital inputs
- control/alarm capability according to the ratio of two temperature sensors
- adjustable HACCP alarm
| Power supply | 230 Vac |
| Design (panel size) | 32 x 74 mm |
| Type of regulation | On/off |
| Control input | Temperature sensor |
| Auxiliary digital input | Yes |
| Output - relay | 4x |
| Display digit colour | Red |
| Producer | Danfoss |
| Analog inputs (AI) [pc] | 5 pc |
| Analog outputs (AO) [pc] | 1 pc |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Other information | 12 pcs without clamps |
| Digital Inputs (DI) [pc] | 1 pc |
| Digital Outputs (DO) [pc] | 4 pc |
| Display on front side | No |
| EEE category | 5 small equipment (any external dimension 50 cm) |
| EU RoHS compliance | Out of scope |
| Package format | Industrial packaging |
| Frequency [Hz] | 50/60 Hz |
| Functions | TXV/AKV, Pe, 3 relays |
| In scope of WEEE | Yes |
| Quantity per package format | 12 pc |
| Supply voltage [V] AC [Max] | 230 V |
| Supply voltage [V] AC [Min] | 115 V |
| Product Name | Enclosure/room controller (EEV) |
| Other RoHS documentation | EAEU RoHS |
| Number of evaporators - max. | 1 pc |
| Product group | Evaporator and room control |
| Sensor connection | Screw terminals |
| Controller - Type | Display case reg. Compact |
| Application range | Cooling control |
| Approval | C-TICK CE |
| Power consumption [VA] | 5 VA |
| Temperature Support Sensor | NTC 5000 NTC10000 PTC 1000 Pt 1000 |
| Pressure. Transmitter - support | Radiometric |
| Identical product | 084B4081 |
| Type | AK-CC55 Compact |
| Communication type | MODBUS |
| Valve output type | AKV/TEV |
| UK RoHS compliance | Out of scope |
| Built-in communication | MODBUS |
| Product Features | CO2 compliant Pe signal S2 injection control |
