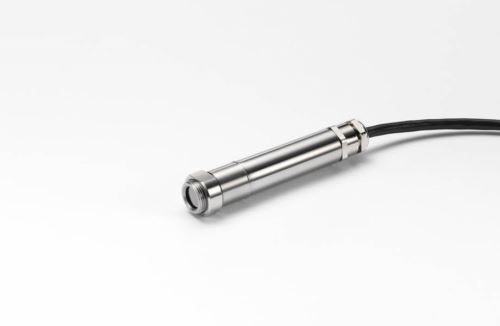

Calex PC151MT-0 industrial IR temperature sensor up to 250°C
Non-contact temperature measurement up to 250°C in a small housing.
On request
- Durable, industrial design
- Analog current output 4...20mA
- Good accuracy and linearity
- Small size
| Temperature sensor type | Infrared |
| Cable length | 1m |
| Measured quantity | Temperature |
| Measuring part of the sensor | Spatial |
| Measured temperature range | -30..+80°C, -40..+110°C, -50..+120°C, -50..+150°C, -50..+250°C |
| Designation | Built-in |
| Producer | Calex |
Pixsys / Calex PC151MT-0 are industrial non-contact temperature sensors with standardized current output. Their advantages are small size, good accuracy and linearity over the entire operating temperature range. As an accessory, an attachment for cleaning the optics with air can be added to these sensors. Using the Pixsys power terminal, the sensors can only be connected in two-wire mode.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 9...28 Vdc |
| Measuring range | 0...+250°C |
| Output | 4...20mA |
| Optics | 15:1 |
| Emissivity | fixed 0.95 modifiable by Offset parameter on the controller |
| Spectral range | 8...14 µm |
| Accuracy | ±1% of value or ±1°C (higher of the two) |
| Operating temperature | 0...+70°C |
| Response time | 240 ms (90%) |
| Dimensions | O18 x 103 mm |
| Mounting | Thread M16 x 1 |
| Housing material | Stainless steel AISI304 |
