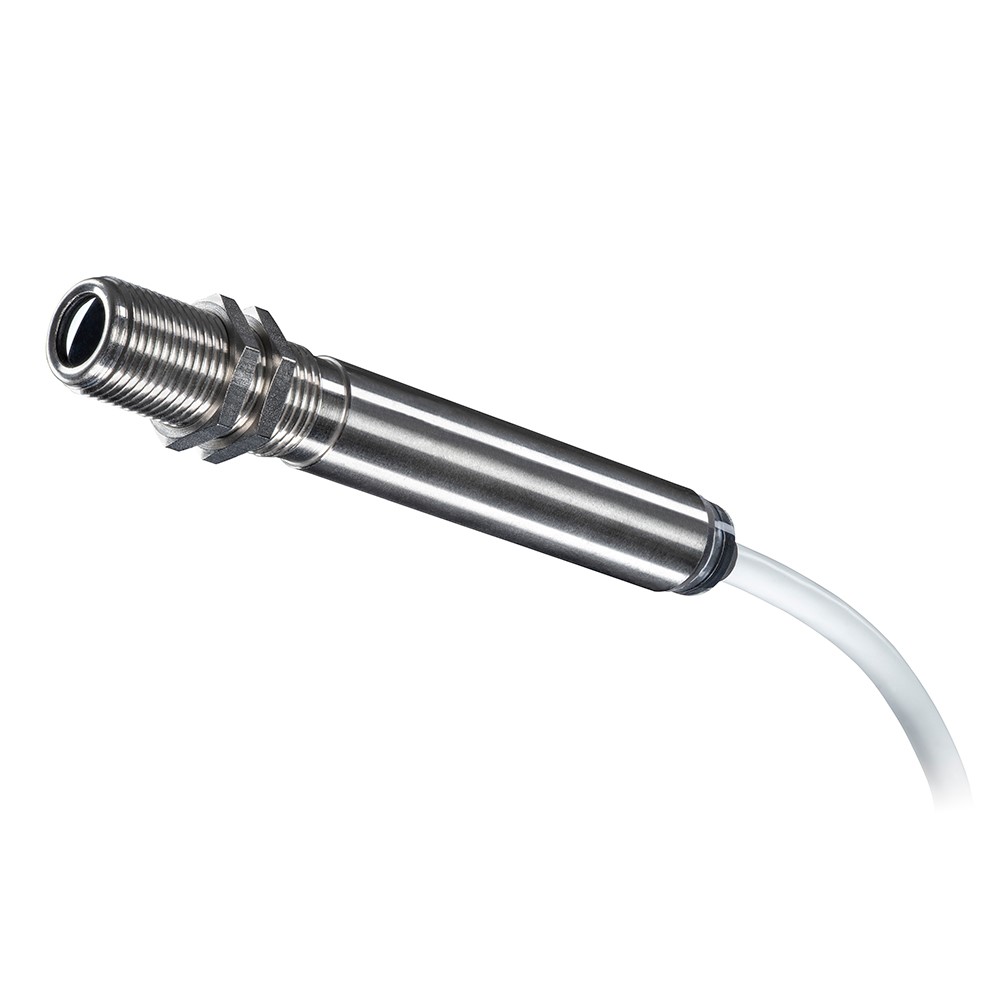

Compact pyrometer Optris OPTCSLT15, cable 3 m
Temperature range -40...+1030°C, optics 15:1, analogue output 0-5/10V
-10 %
Featured
In stock

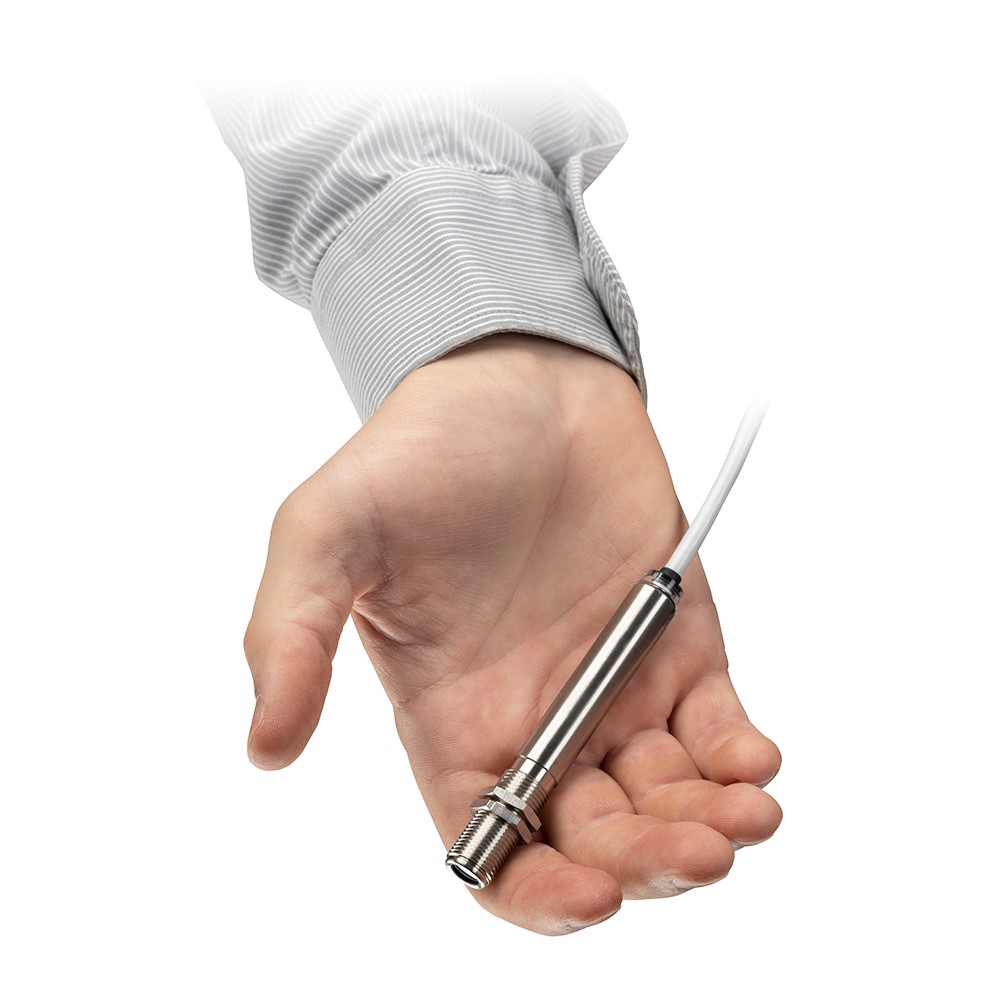

- Infrared pyrometer suitable for measurements in small and confined spaces
- Large, software-adjustable measuring range (up to +1030°C)
- Usable up to ambient temperature +80°C without additional cooling
- Promotional price
- Software link: optris Compact Connect
| Temperature sensor type | Infrared |
| Cable length | 3m |
| Measured quantity | Temperature |
| Measuring part of the sensor | Spatial |
| Measured temperature range | -30..+80°C, -40..+110°C, -50..+120°C, -50..+150°C, -50..+250°C, -50..+400°C, worse than -30..+80°C, above +400°C |
| Producer | Optris |
| TECHNICAL PARAMETERS | |
|---|---|
| Sensor type | Infrared |
| Measuring range | -40...+1030°C |
| Spectral range | 8...14 µm |
| Optical resolution (90% energy) | 15:1 |
| Output | 0...5V, 0...10V k thermocouple |
| Cable | 3m |
| Power supply | 5...30V max. 10mA |
| Accuracy | ±1.5% or ±1.5°C |
| Response time | 25 ms (adjustable) |
| Coverage | IP63 |
DescriptionTechnical parametersDownload
