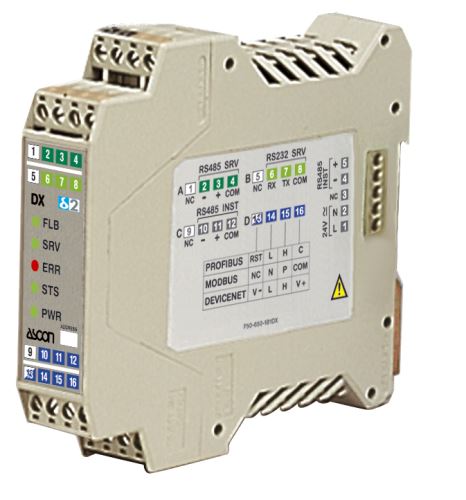

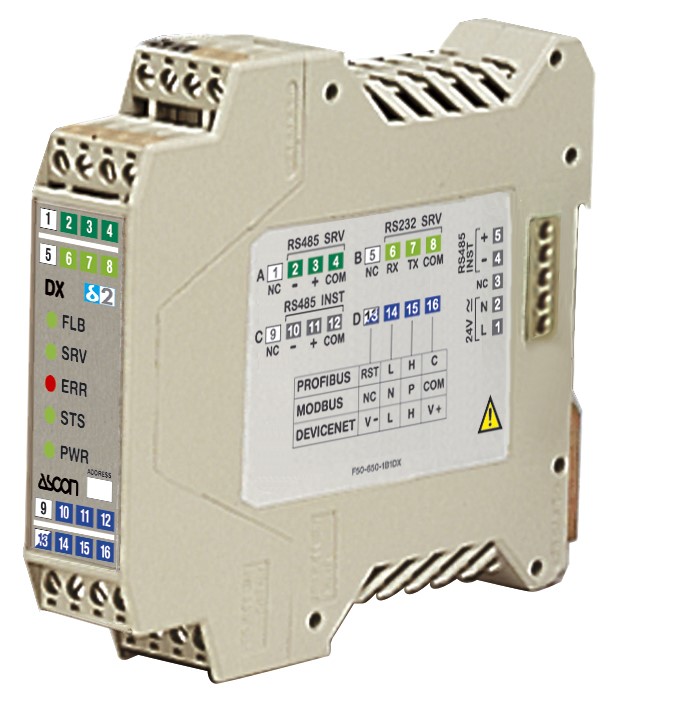

Converter Ascon Tecnologic DX5000 0000 from RS232 to RS485
Network communication converter. Part of a modular system for a wide range of applications.
Can be integrated with PC or PLC.
| Power supply | 24 Vac/dc |
| Design (panel size) | DIN |
| Control input | Digital signal |
| Output - relay | 0x |
| Communication Bus | RS485 |
| Producer | Ascon Tecnologic |
ModBus-RTU, PROFIBUS DP or DeviceNet to Modbus-RTU protocol converter.
Characteristic features:
- Compact dimensions (DIN-width 22.5mm)
- Protocol gateway (conversion/repeater/adapter) to ModBus-RTU protocol
- For both Ascon Tecnologic and third party products
- Dedicated parent function for backup and restore of configurations and parameters of Deltadue series modules.
- Up to 64 connectable slave devices
- Connectable to ModBus, Profibus-dp and Devicenet networks
- Power and RS485 on the side for improved modularity
Features:
- ModBus RTU signal converter between RS232 and RS485
- Repeater ModBus RTU RS485 / RS485
- ModBus RTU signal converter between RS485 and RS485
- Data transfer between modules over ModBus RTU RS485
