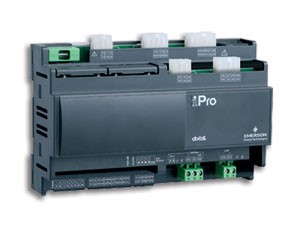

Dixell IPX115D 10000 expansion module for iProGenius system
It is used to extend the iProGenius series programmable controllers with additional analog and digital inputs and analog and relay outputs.
On request
- Dixell iProGenius Input/Output Expansion Module
- CANBus and LAN connection for communication with programmable controllers
- Direct communication address setting with DIP switches for easy installation
- DIN rail mounting
| Power supply | 24 Vac/dc |
| Design (panel size) | DIN |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | >5x |
| Analog output | Yes |
| Communication Bus | CAN |
| Producer | Dixell |
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24 Vacdc |
| Consumption | max. 20VA |
| Analog inputs | 10x 0..1V, 0..5V, 0..10V, 0..20mA, 4..20mA, NTC, PTC, dig.input |
| Digital inputs | 20x configurable, opto-isolated |
| Analog outputs | 2x 0..10V, 4..20mA 4x 0..10V |
| Digital outputs | 12x 5A 250V 3x 8A 250V |
| Other connections | to LAN bus to CANBus |
| Dimensions | 10 DIN modules 110 x 175 x 59.5mm |
