Dixell PPR30 refrigerant pressure sensor, 0 to 35 bar
Internal thread 7/16", measuring range 0...35 BAR, output 0,5..4,5 V, power supply 4,5..5,5 Vdc, IP65
On request
![Kapilára s maticemi a odmačkávačem 1/4" x 1/4" SAE, 0,6 m](https://cdn.az4.shop/images/0/5ae898701a62d110/3/kapilara-s-maticemi-a-odmackavacem-1-4-x-1-4-sae-0-6-m.png?hash=319558963 "Kapilára s maticemi a odmačkávačem 1/4" x 1/4" SAE, 0,6 m")
![Spojka přímá 1/4" x 1/4" SAE](https://cdn.az4.shop/images/0/4599fc5f64312e54/3/spojka-prima-1-4-x-1-4-sae.jpg?hash=319558963 "Spojka přímá 1/4" x 1/4" SAE")
![Spojka provoúhlá 1/4" x 1/4" SAE - 90](https://cdn.az4.shop/images/0/8fbba29daef598ed/3/spojka-provouhla-1-4-x-1-4-sae-90.JPG?hash=319558963 "Spojka provoúhlá 1/4" x 1/4" SAE - 90")
- Proportional pressure sensor
- Female thread 7/16"-20UNF
- Ideal for refrigeration and HVAC applications
- Conveniently priced
- 0...5V output
- 2m three-conductor cable
| Maximum measured value | Over 10 bar |
| Measured quantity | Pressure |
| Producer | Dixell |
| Output voltage | 0,5-4,5 V |
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 4,5...5,5 Vdc |
| Measuring range | 0...+35 bar |
| Output | 0,5...4,5 V |

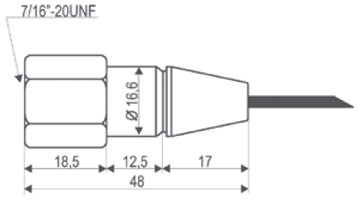

| Dimensions | Thread 7/16" - 20 UNF female |
| Coverage | IP65 |
| Operating temperature | -40...+135°C |
| Accuracy | 1.2% of range |
DescriptionTechnical parametersDownload
