Dixell VGIPG 1P010 programmable graphic display for panel mounting
Fully programmable graphic display for Dixell iProGenius controllers.
In stock
- Fully programmable, including visualization
- Monochrome LCD 240 x 96 px
- For panel mounting
- Support for UNICODE character encoding
- Buzzer for local reporting of alarm conditions
| Display digit colour | Blue |
| Producer | Dixell |

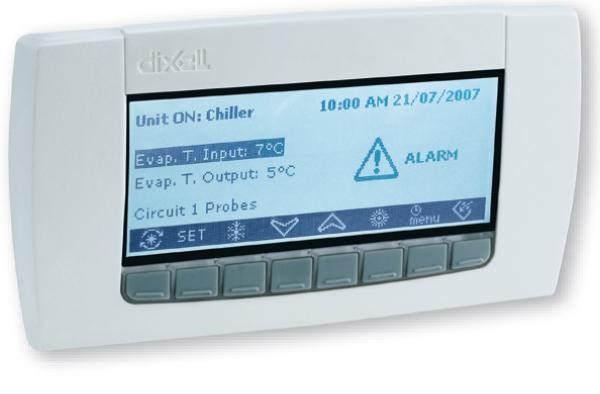

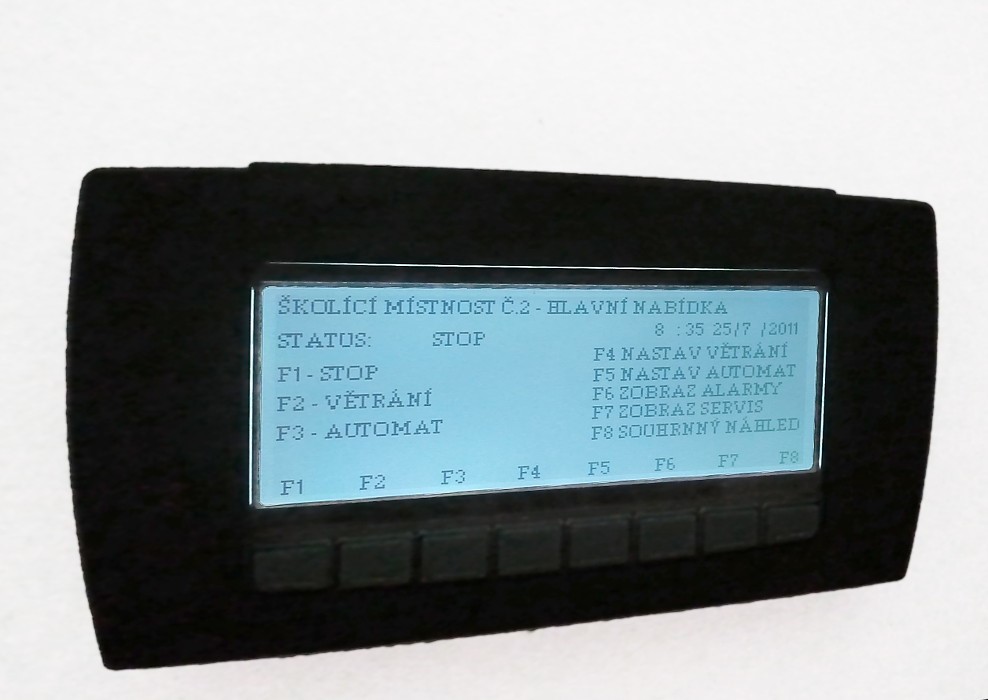

Dixell Visograph graphic displays are a versatile solution designed by Dixell to connect to the IC200 and iPro series controllers. They provide complete device information, have intuitive interfaces, offer easy and fast installation and allow full customisation to the customer's requirements and the device being controlled.
Features and functions of Dixell Visograph graphic displays:
- Great visibility and extensive customization options
- LCD display with 240 x 96 dot resolution
- Full integration with ISaGRAF® projects
- Compatible with Unicode character set

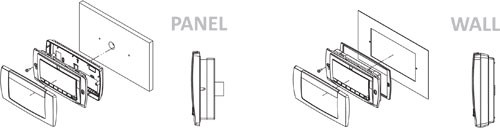

- Choice of surface mount or panel mount
- Maximum cable length to iPro controllers 150m
- Fully programmable via Visoprog key or via USB from iPro
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Power supply | from the controller |
| Display | LCD 240 x 96 px |
| Installation | into the panel cut-out 69 x 127 mm |
| Front panel cover | IP65 |
| Operating conditions | -10...+60°C 20...85%RH |
| Dimensions | 82 x 156 x 25mm |
| Buzzer | yes |
| Supported character encoding | Unicode |
