Dixell XC30CX 5B00H controller for condensing units with 2 fan control
size 32x74 mm, power supply 230 Vac, 2x input 0-5V + PTC, 3x output relay
In stock
- regulation of condensing units
- pressure probe error control
- temperature and pressure safety protection
- control of 2 fans
- alarms
- CAB/HK interconnecting cables are not included in the controller and must be ordered as a separate item
| Power supply | 230 Vac |
| Design (panel size) | 32 x 74 mm |
| Type of regulation | On/off |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | 3x |
| Display digit colour | Red |
| Producer | Dixell |

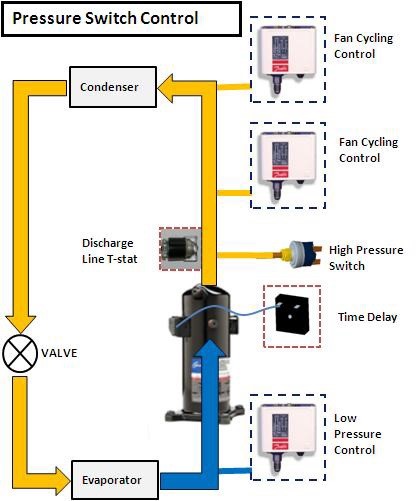

Digital thermostat for control of condensing units. Two output relays for individual control of two fans. Allows connection of two pressure (temperature) sensors for compressor suction and discharge. Digital inputs can be used to set the protection parameters of the condensing unit. Controller parameters are fully programmable via keypad or HOT-KEY.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 230Vac ±10%, 50/60Hz |
| Inputs | suction pressure: 0-5V, NTC discharge pressure: 0-5V, NTC outlet temperature: PTC (990 ?) digital voltage-free contact |
| Outputs | relay for compressor: 20A (8A inductive load) relay for fan 1: 8A (3A inductive load) or 16A (6A) relay for fan 2: 5A or 16A (6A inductive load) |
| Resolution | 0.1°C or 1°C or 1°F (optional) |
| Accuracy | ±0.7°C ±1 digit |
| Coverage | IP20 (front panel IP65) |
| Dimensions | 32x74mm; depth 70mm |
| Mounting | in panel with cut-out hole 71 × 29 mm |
