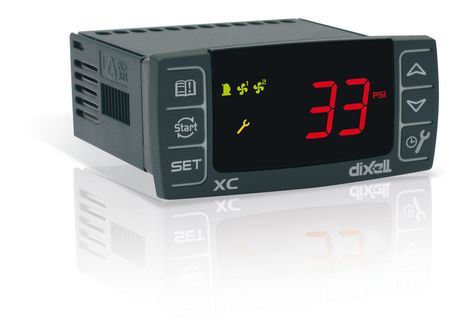

Dixell XC35CX 5B25H controller with analogue output for up to two compressors
In stock
- regulation of single or double compressor condensing units
- control of variable frequency drive compressors, digital compressors and conventional on-off compressors
- input for NTC, Pt1000 temperature probes or 0-5V pressure sensors
- temperature and pressure safety protection
- 0-10V analogue output for variable speed control of fans or compressor
- control of up to 2 fans
- alarms
- CAB/HK interconnecting cables are not included in the controller and must be ordered as a separate item
| Power supply | 230 Vac |
| Design (panel size) | 32 x 74 mm |
| Type of regulation | On/off |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | 2x |
| Analog output | Yes |
| Display digit colour | Red |
| Producer | Dixell |
Dixell XC35CX are single or dual compressor condensing unit controllers, allowing control of one compressor output and one fan speed. They are equipped with inputs for suction and condensing pressure and HP temperature sensors. They also include 3 programmable digital inputs for HP safety preset, start-up, etc.
Dixell XC35CX features and options:
- Condensing unit control with alarm condition recording
- Smart management of pressure sensor errors
- Input for external triggering
- Compressor start protection function with condensed refrigerant suction
- Temperature sensing on the suction or discharge side of the compressor
- Triac output for electronic speed control of condenser fan or load solenoid Digital Scroll compressors
- Analog output 0...10V or PWM to control fan speed, Digital Scroll compressors load solenoid or compressor frequency converter
- Operating hours and start count counter
- Safety protection for high pressure, suction temperature, compressor discharge temperature
- Direct access to alarm menu and operating log
- HotKey / ProgToolKit connector for quick and easy programming
- Maximum power consumption 3VA
- Display with red digits (10.5mm) and colored status icons
- Optionally can include RTC (Real Time Clock)
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Power supply | 230Vac ±10%, 50/60Hz |
| Inputs | suction pressure: 0-5V, NTC , Pt1000 discharge pressure: 0-5V, NTC, Pt1000 additional up to 2x NTC, Pt1000 sensors up to 3x digital voltage-free contact |
| Outputs | 1x 16A relay (8A inductive load) 1x 5A relay (2A inductive load) 1x Triac 2FLA/12LRA, 30k cycles 1x analogue output 0-10Vdc, max 20mA |
| Resolution | 0.1°C or 1°C or 1°F (optional) |
| Accuracy | ±0.7°C ±1 digit |
| Coverage | IP20 (front panel IP65) |
| Dimensions | 32x74mm; depth 60mm |
| Mounting | in panel with cut-out hole 71 × 29 mm |
