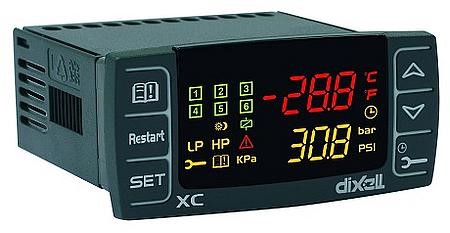

Dixell XC650CX 1C15F controller for condensing units with 5 outputs and Digital Scroll compressor control
size 32x74 mm, power supply 24 Vac.DC, 2x analog input 4..20mA/0..5V/NTC, 5x output relay + analog output
Ordered from manufacturer
Connection cable Dixell CW15-KIT 1,5m with connectors 12-14pin female
In stock
53,61 EUR excl. VAT64,86 EUR
Interface Dixell XJ485USB-KIT for programming controllers from PC via USB
In stock
117 EUR excl. VAT142 EUR
Carel SPKT0021D0 refrigerant pressure sensor, -0.5 to 7 bar, female thread
In stock
71,12 EUR excl. VAT86,06 EUR
- for control of condensing units with Digital Scroll compressor
- up to 5 compressor/fan outputs
- 2x analogue input NTC/4..20mA/0..5V
- 1x analog output
- Connection cables CW15-KIT, CAB/CJ15, CAB/CJ30 are not included in the controller and must be ordered as a separate item
Dixell XC600 series comparison:
| XC645CX | XC645D | XC650CX | XC660D | |
| Power | 12, 24 Vacdc | 230 Vac | 12, 24 Vacdc | 230 Vac |
| Analog inputs: | ||||
| Suction | 0..5V, 4..20mA, NTC | 0..5V, 4..20mA, NTC | 0..5V, 4..20mA, NTC | 0..5V, 4..20mA, NTC |
| Displacement | 0..5V, 4..20mA, NTC | 0..5V, 4..20mA, NTC | 0..5V, 4..20mA, NTC | 0..5V, 4..20mA, NTC |
| Configurable input | NTC | NTC | NTC | 0..5V, 4..20mA, NTC |
| Digital inputs: | ||||
| Low pressure switch | 1 | 1 | 1 | 1 |
| High pressure switch | 1 | 1 | 1 | 1 |
| Alarm | 4 | 5 | 4 | 6 |
| Configurable | 1 | 2 | 1 | 2 |
| Outputs: | ||||
| Relay | 4x 5A | 4x 5A | 5x 5A | 6x 5A |
| Digital™ compressor | Triac | Triak | ||
| Fr.inverter for compressor | Optional 4..20mA, 0..10V | Optional 4..20mA, 0..10V | Optional 4..20mA, 0..10V | |
| Fr.inverter for fans | Optional 4..20mA, 0..10V | Optional 4..20mA, 0..10V | Optional 4..20mA, 0..10V | Optional 4..20mA, 0..10V |
| Load | 12V/40mA | 12V/40mA | ||
| Other features: | ||||
| Communication | TTL | RS485 | TTL | RS485 |
| Remote keypad | VC660 | VC660 | ||
| Connection kit | CWC15-KIT, CWC30-KIT, CAB/CJ15, CAB/CJ30 | CW15-KIT, CW25-KIT, CAB/CJ15, CAB/CJ30 |
| Power supply | 24 Vac/dc |
| Design (panel size) | 32 x 74 mm |
| Type of regulation | PI |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | 5x |
| Analog output | Yes |
| Display digit colour | Two colours |
| Producer | Dixell |
The Dixell XC650CX is a combined condensing unit controller with the ability to control up to 5 compressors and fans simultaneously, with frequency control of both compressor and fan output.
Features and functions of the Dixell XC650CX controllers:
- Digital™, multi-stage, variable capacity, semi-hermetic, scroll, screw type compressors
- Selectable control as proportional zone or neutral zone
- Floating condensing pressure control depending on external temperature
- High configurability and flexibility
- Automatic shutdown of compressors in case of high condensing pressure / temperature
- Silent mode function of fans during night
- Automatic lubricant transfer system in the circuit
- Safer control with low and high pressure safety switch
- Adjustable refrigerant type for pressure - temperature conversion
- Memory for the last 10 alarms
- HotKey/ProgToolKit connector for easy and quick programming
- Connection to Xweb monitoring system
- Maximum power consumption only 5 VA
- Dual display with 17 status icons

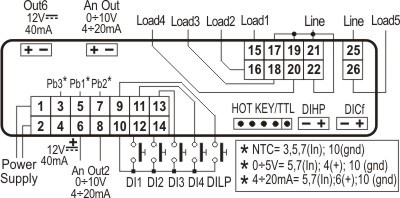

| TECHNICAL SPECIFICATIONS | |
|---|---|
| Dimensions | front panel 32x74 mm, depth 70mm |
| Mounting | in panel, hole 29x71mm |
| Power supply | 24Vac/dc ±10% |
| Consumption | max. 5 VA |
| Coverage | IP65 (front panel), otherwise IP20 |
| Inputs | 2 x NTC/4..20mA/0..5V (optional parameter) 7 x digital input |
| Outputs | 5 x SPST 5(3)A relay, 250Vac 2x analogue output 4÷20mA or 0÷10V oA6 open collector output 12V, 40mA TTL, ModBus - RTU |
| Resolution | 0.1°C; 1°F; 0.1bar; 1 PSI; |
| Accuracy | ±0.7 °C ±1 digit |
