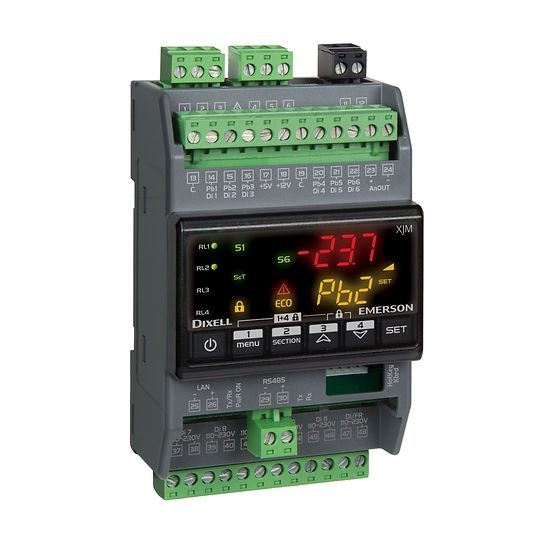

Dixell XJM60D 71300 data acquisition and output relay module for Xweb monitoring systems

DIN, inputs 3xPTC or 3 potential contacts, 230Vac, RS485
Dixell XJM60D 71300 data acquisition and output relay module for Xweb monitoring systems
Dixell XJM60D 71300 data acquisition and output relay module for Xweb monitoring systems
Dixell XJM60D 71300 data acquisition and output relay module for Xweb monitoring systems (1)
280 EUR 232 EUR excl. VAT
On request
In person in Prague:on requestWith a delivery company:on request
Code2D-020-020PNDIN, 90-260 Vstř, RS485, displej, 3 reléProducerDixellWarranty2 years
  • Possibility to monitor up to 6 temperatures using NTC / PTC / Pt1000 sensors or
  • Ability to monitor up to 3x temperature (NTC / PTC / Pt1000) and 3x signals 4..20mA / 0..5V / 0..10V / pulses or
  • Ability to connect up to 6 digital signals (instead of analog inputs)
  • Option to connect 6 more digital potential inputs (230Vac)
  • Total of 12 adjustable inputs
  • 4x output adjustable relays to control the connected technology
  • Analog output 4..20mA or 0..10V
  • RS485 for communication with the Dixelll Xweb master monitoring system
  • Option to connect a VJM60 remote keypad for direct control
ProducerDixell
DescriptionDownload
