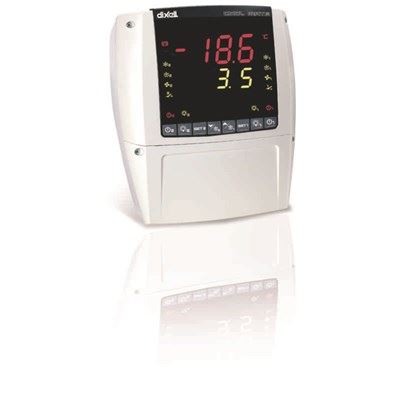

Compact Dixell XLR470 500C1 wall-mounted controller for dual temperature control
Compact wall-mounted cooling/heating controller with simultaneous dual temperature control
On request
- Ideal for cooling/heating applications such as hot food counters with refrigerated storage areas
- Designed for dual cooling circuits with two independent circuits
- Integrated evaporator defrost management
- User selectable cooling/heating options
- Direct 230 Vac power supply without external transformer
- Dual colour display (25.3 + 20.3 mm digit height) with 13 status icons
- Quick and easy connection of wires
- Wall or panel mountable
- HotKey / ProgToolKit connector for quick and easy programming
- Optional RS485 serial communication for monitoring systems
- Maximum power consumption 10VA
- Comes standard with a buzzer for reporting alarm conditions
| Power supply | 230 Vac |
| Design (panel size) | Other |
| Type of regulation | On/off |
| Control input | Temperature sensor |
| Auxiliary digital input | Yes |
| Output - relay | >5x |
| Communication Bus | RS485 |
| Display digit colour | Two colours |
| Producer | Dixell |
The Dixell XLR470 compact wall-mounted controller is designed for independent control of two temperatures. It allows the control of two independent cooling/heating circuits, with the option to control active defrosting for both circuits. There are two auxiliary digital inputs, one as a door switch and the other with an adjustable function. The Dixell XLR470 controller has inputs for a total of 4 temperature probes (1. Space, 2. Space, 1. Defrost, 2. Defrost) and 8 output relays (2x compressor, 2x defrost, lighting, 2x evaporator fan, alarm relay). Optionally can be ordered with RS485 communication and real time.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 230 Vac ±10 %, 50/60 Hz |
| Power consumption | max 7 VA |
| Display | 3-digit red, height 25.3 mm 4-digit yellow, height 20,3mm 13 status icons |
| Accuracy at 25 °C | better than ± 0.5% of range |
| Inputs | 4x NTC 2x configurable voltage-free digital input |
| Outputs | 2x compressor - switching relay 20(8) A / 250 Vac 1x light - switching relay 16(6) A / 250 Vac 1x alarm - switching relay 8(3) A / 250 Vac 2x defrost - switching relay 16(6) A / 250 Vac 2x fan - switching relay 8(3) A / 250 Vac |
| Dimensions | 210 x 230 x 87 mm |
| Operating conditions | 0...60°C, 20...85% humidity |
