Dixell XR70D 5N0C1 cooling controller with fan control and DIN auxiliary relay

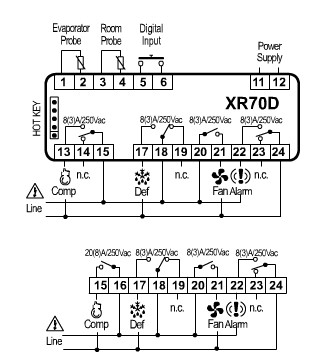

The Dixell XR70D models are microprocessor-based controllers particularly suitable for medium or low temperature cooling applications. They are designed to be mounted in a DIN rail rack, where they take up space for 4 modules. They are equipped with four relay outputs: for compressor control, fan control, defrost (can be either electric or reverse cycle - hot steam) and a final, fourth relay for temperature alarm signalling. Dixell XR70Ds are equipped with two inputs for PTC or NTC temperature sensors. One for temperature control and the other, located on the evaporator, is used for defrost termination temperature control and fan control. The Dixell XR70Ds also have a digital input for alarm signaling, auxiliary output activation, door open sensor or defrost start. With the new HACCP function, the last temperature alarms are recorded to allow for follow-up.

The instruments can be fully configured with parameters that can be easily programmed using the keypad, the HOT KEY programming key or simply using a PC and the Wizmate Prog-Tool interface.
