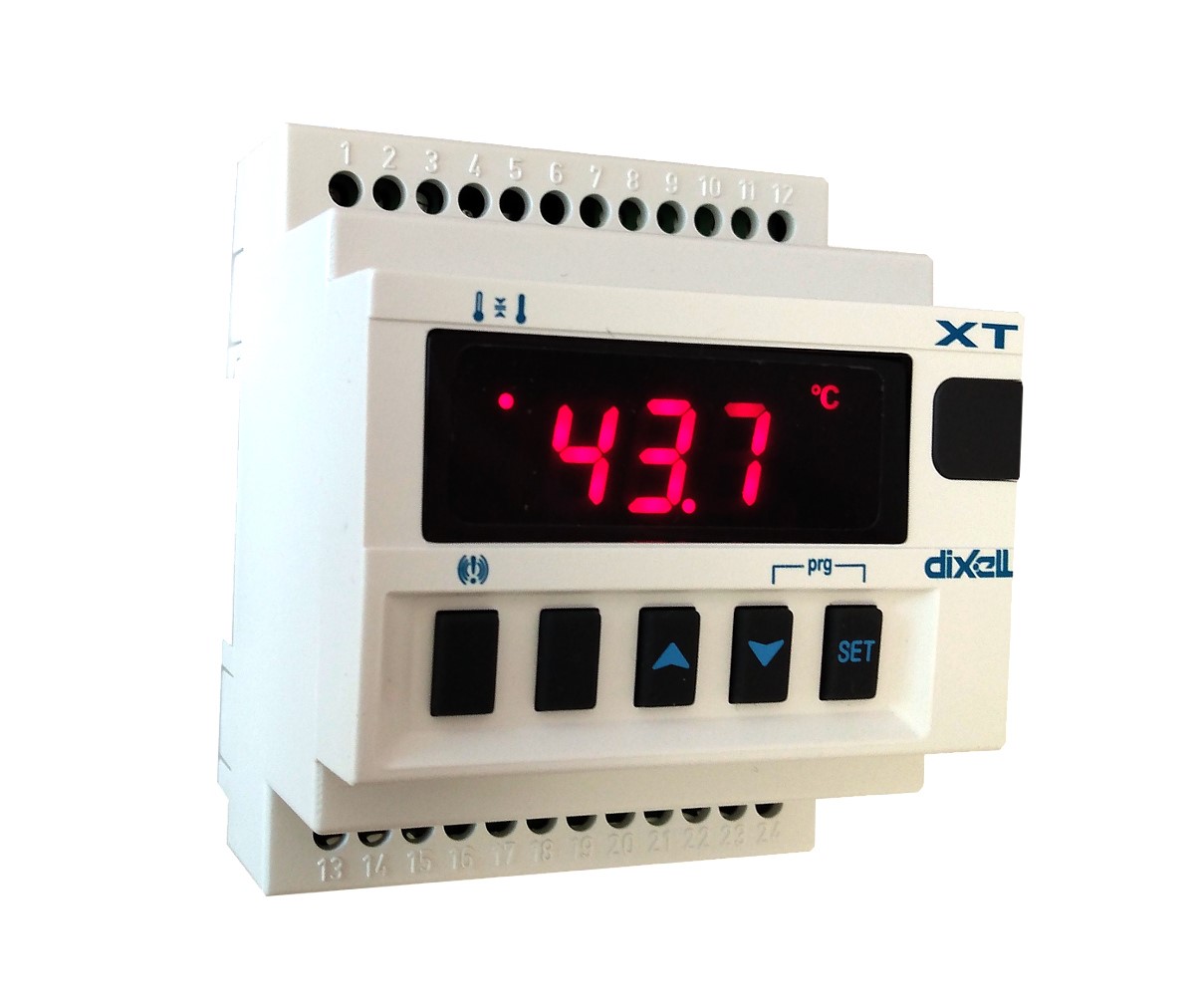

Dixell XT110D 1N0AU controller with current or voltage analog input
DIN rail mounted, power supply 24 Vac/dc, analog input 4-20mA / 0-1V / 0-10V, output 1x relay
In stock
Carel SPKT0021D0 refrigerant pressure sensor, -0.5 to 7 bar, female thread
In stock
71,12 EUR excl. VAT86,06 EUR
Carel SPKT0031D0 refrigerant pressure sensor, 0 to 30 bar, female thread
In stock
71,12 EUR excl. VAT86,06 EUR- Two-state ON/OFF controller for controlling temperature, humidity, pressure, etc.
- One analogue programmable input for connecting sensors
- Choice of current (4...20mA) or voltage (0...1V / 0...10V)
- One control output for direct or inverse operation (e.g. heating/cooling)
Dixell XT100D Series Comparison:
| XT110D | XT111D | XT120D | XT121D | XT130D | XT131D | XT141D | XT160D | |
| Power supply | 24Vacdc, 230Vac | 24Vacdc, 230Vac | 24Vacdc, 230Vac | 24Vacdc, 230Vac | 24Vacdc, 230Vac | 24Vacdc, 230Vac | 24Vacdc, 230Vac | 24Vacdc, 230Vac |
| Inputs: | ||||||||
| NTC, PTC, Pt100, TcJ, TcK, TcS, or 4..20mA, 0..1V, 0..10V | 1x configurable | 1x configurable | 1x configurable | 1x configurable | 1x configurable | 1x configurable | 1x configurable | 1x configurable |
| Digital input | 1x configurable | 1x configurable | 1x configurable | 1x configurable | 1x configurable | 1x configurable | 1x configurable | 1x configurable |
| Output relay: | ||||||||
| Stage 1 | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A |
| Grade 2 | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A | ||
| Grade 3 | no 8A / nc 5A | |||||||
| Grade 4 | 8A | |||||||
| Alarm | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A | no 8A / nc 5A | ||||
| Other features: | ||||||||
| Communication | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Analog output | 4..20mA, 0..10V optional | 4..20mA, 0..10V optional | 4..20mA, 0..10V optional | 4..20mA, 0..10V optional | 4..20mA, 0..10V optional | 4..20mA, 0..10V optional | 4..20mA, 0..10V optional | 4..20mA, 0..10V optional |
| Alarm buzzer | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Power supply | 230 Vac |
| Design (panel size) | DIN |
| Type of regulation | On/off |
| Control input | Analog signal |
| Auxiliary digital input | Yes |
| Output - relay | 1x |
| Display digit colour | Red |
| Producer | Dixell |
Dixell XT110D models (DIN rail mounted) are two-state ON/OFF controllers for controlling temperature, humidity, pressure or other variables.
The analog input can be set to 4...20 mA / 0...1 V / 0...10 V analog signals.
All XT series controllers are equipped with a digital input, optional buzzer and can be programmed quickly and easily using the HOT KEY programming key. The basic version also includes a TTL output for connecting the controller to serial communication.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24 Vacdc ±10 % |
| Power input | approx. 3VA |
| Accuracy at 25 °C | better than ± 0.5 °C |
| Sampling time | 1s |
| Front Panel Coverage | IP20 |
| Input | 4...20mA / 0...1V / 0...10V |
| Other inputs | digital input - voltage free contact |
| Output | switching relay 8(3) A / 250 V |
| Other outputs | TTL output for serial communication (output for HOT KEY programming key) |
