Dixell XWEB500D 8N000 monitoring system with cost-effective CRO management for remote management of up to 50 devices

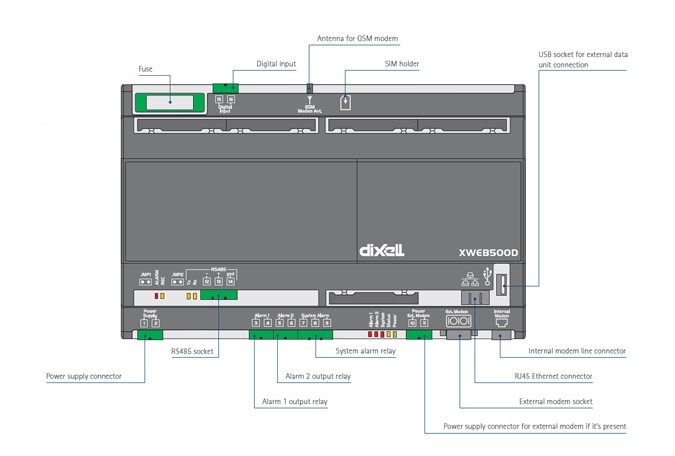

Dixell XWEB500D are monitoring units for smaller applications or where a display is not required. Access to the units is local or remote. Communication is via a standard web browser. They are designed for DIN rail mounting in a rack. The integrated WEb server reads and processes data coming from Dixell controllers connected to the unit via RS485, using the Modbus-RTU protocol. Thanks to the universal Modbus-RTU communication protocol, the XWEB is also able to communicate with non-Dixell products.

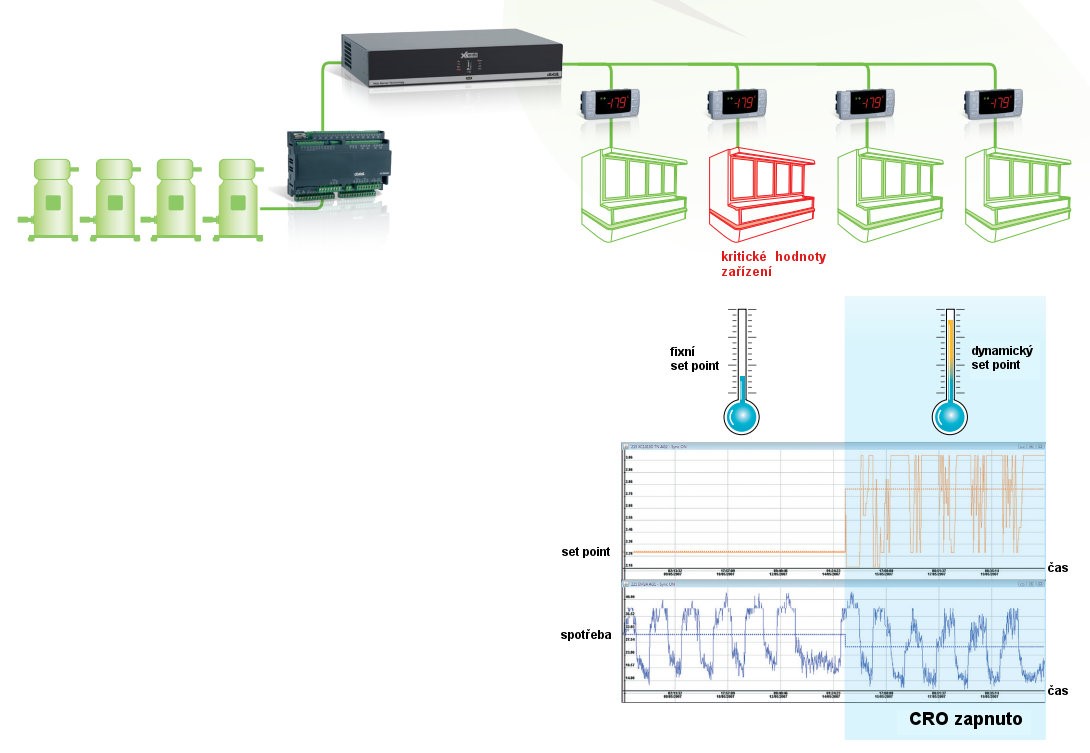

This version of the XWEB monitoring unit also includes one C.R.O. (Compressor Rack Optimization) module. This is used to minimize the operating costs of the cooling process depending on the devices connected to the XWEB unit and their current status. By changing the setpoint setting in the compressor suction, it optimizes the whole process and can reduce the cooling energy requirements by 10 to 20%.

Options and features supported by Dixell XWEB:

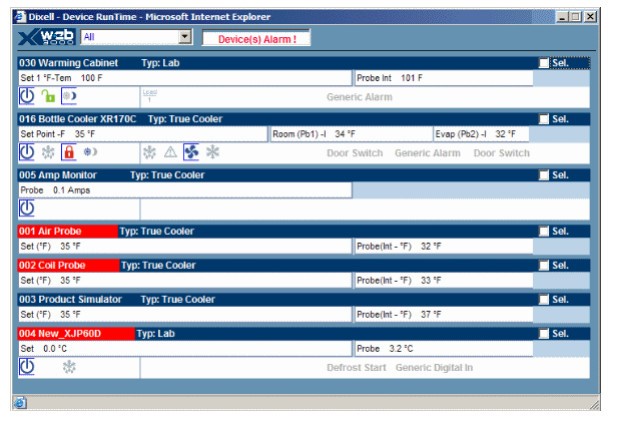

- monitoring and logging of data, alarms and connected devices
- processing of user-defined alarms. Local display and remote transmission via email or sms

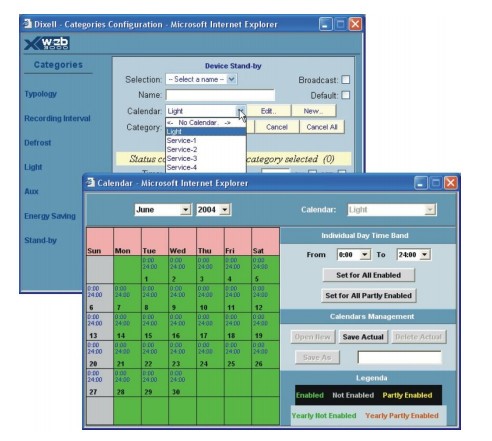

- interactive control of connected controllers or other devices, including time-dependent functions
- remote setting of parameters of connected devices

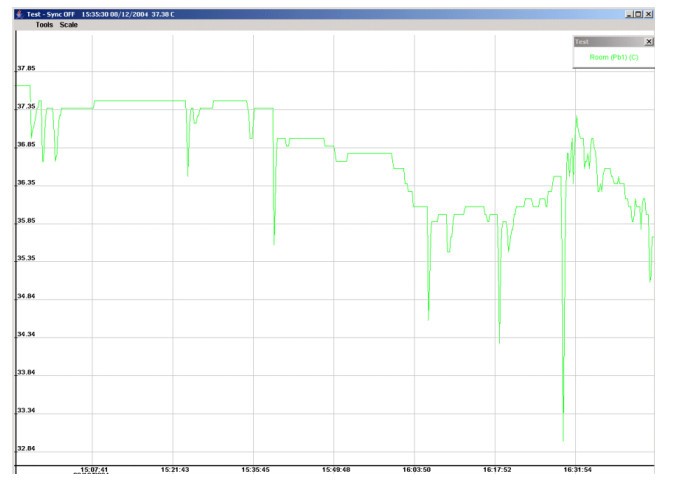

- graphical or tabular processing of recorded data and its export
- other service functions

Please note that the installation and especially the subsequent setup and recovery of the XWEB EVO system is not a trivial matter and therefore it is imperative that a certified technician or contractor performs the installation.
