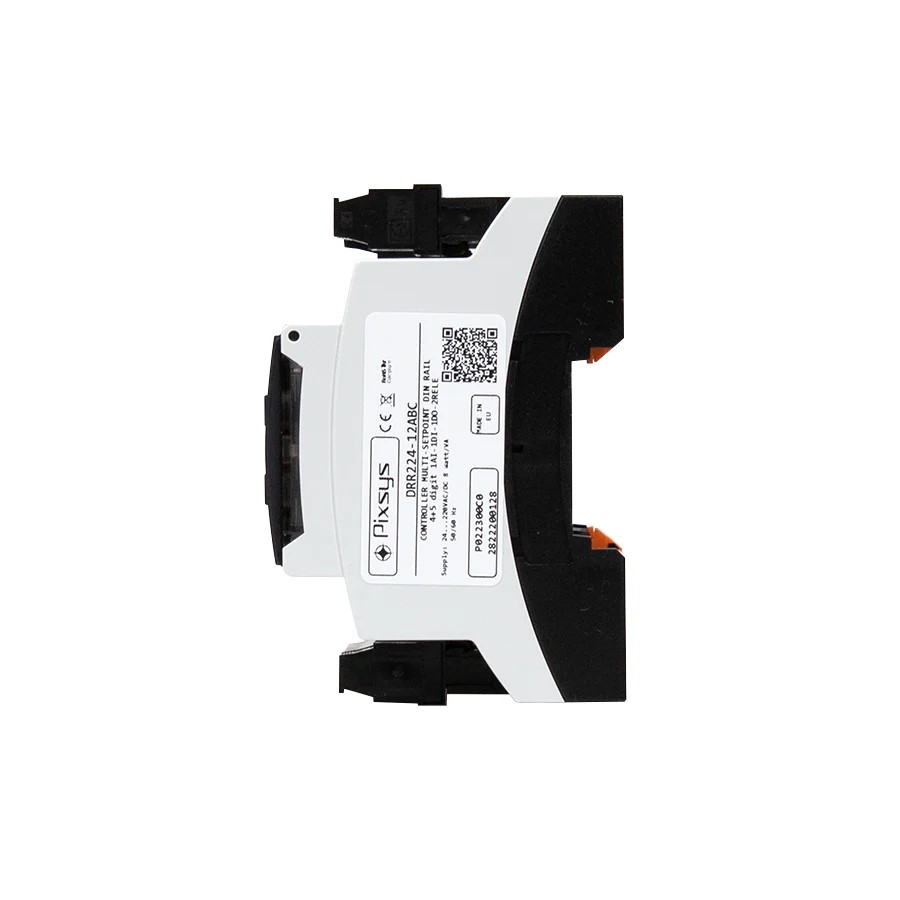

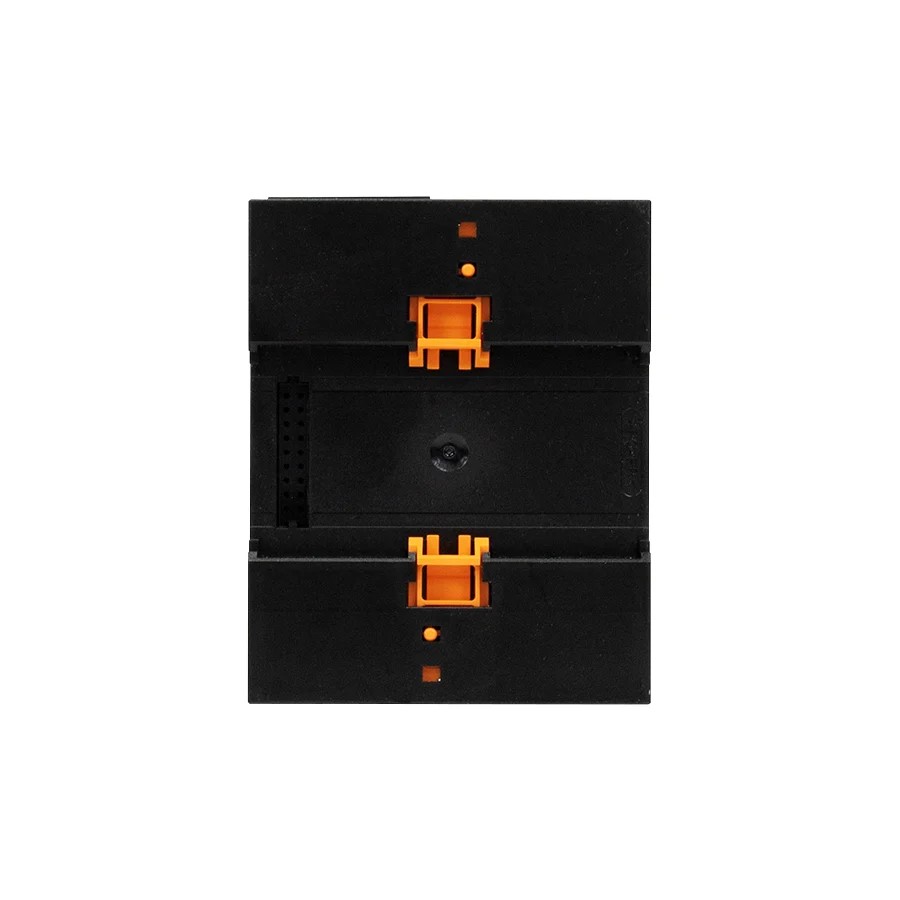

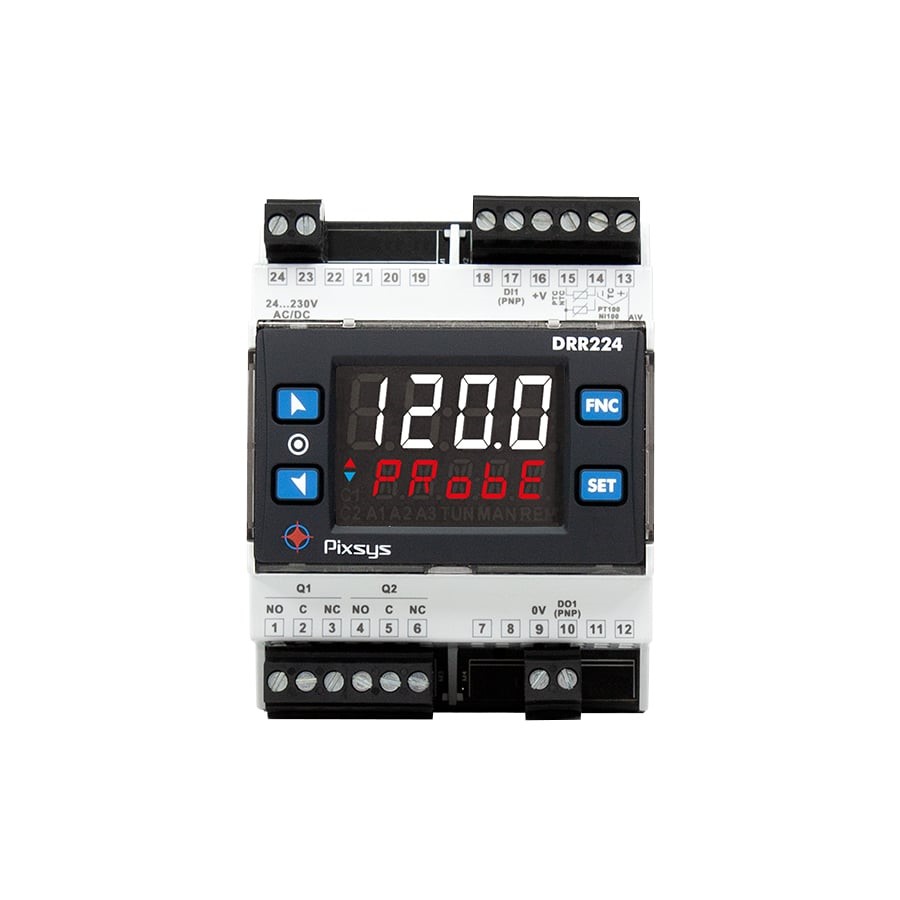

DRR224 PID controller - simplified and reduced version of DRR244 series
Universal DIN rail mounted controller, power supply 24-230Vac/dc, universal input, output 2x relay + 1x for SSR
-25 %
Ordered from manufacturer
The DRR224 PID controller is a simplified and reduced version of the DRR244 series.
The analog input is programmable for temperature sensors (resistance thermometers and thermocouples) or for mA/Volt current/voltage process signals used by pressure transducers, humidity and flow sensors or transducers.
The controller outputs can be selected as command and multiple alarm modes.
An extended power supply range from 24 to 230 VAC/DC increases its flexibility. It is supported by the MyPixsys App for configuration via NFC/RFID.
| Power supply | 24-230 Vac/dc |
| Design (panel size) | DIN |
| Type of regulation | PID |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | 2x |
| Output for SSR | 1x |
| Display digit colour | Two colours |
| Producer | Pixsys |
.
| TECHNICAL PARAMETERS | |
|---|---|
| Main features | |
| Dimensions | 71 x 90 x 64 mm - 4 modules DIN43880 |
| Material | Enclosure: UL94V2, self-extinguishing, front side: PC UL94V2 |
| Weight | Approx. 185 g |
| Seal | Front panel: IP65, enclosure and terminal block: IP20 |
| Operating conditions | Temperature 0..45 °C, humidity 35..95 RH% |
| Certification | CE |
| Hardware features | |
| Power supply | 24..230 V AC/DC ±15% 50/60 Hz - 2.5KV galvanic isolation |
| Consumption | 8 Watt/VA |
| View | 4 digits 0.52'', 5 digits 0.30'' |
| Analog inputs | 1 x Ris. 16bit, programmable for thermocouples K, S, R, J, T, N, B (automatic cold junction compensation -25..85 °C, ±0.2% F.S. ±1 digit F.S. ), thermocouplesPT100, PT500, PT1000, Ni100, PTC1K, NTC10K (ß 3435K), process signals 0..10 V (50000 points), 0/4..20 mA (40000 points), 0..60 mV (25000 points), potentiometer 1..150 K? (50000 points) |
| Sampling time | Programmable up to 2.1 ms (frequency up to 470 Hz) |
| Digital inputs | 1x PNP |
| Digital outputs | 1x SSR 12 / 24 V DC - max. 25 mA |
| Auxiliary output | 12/24 V DC - max. 30 mA for powering sensors |
| Relay outputs | 2x 2 A - 250 V AC resistive load |
| USB | 1x micro USB for programming via PC with LabSoftView |
| Software functions | |
| Control algorithms | On-off with hysteresis, P., P.I., P.I.D., P.D. with time proportion |
| Settings | Manual or automatic |
| Alarm mode | Absolute/threshold, band, upper/lower deviation, Alarms with selectable manual reset and activation delay, Loop break alarm |
| Dual PID | Dual PID heating/cooling |
| Soft-Start | Rising gradient programmable as Degree/Hour or fixed % output |
| Open/close logic | Motorized valves |
| Software parameter configuration | Memory card, LABSOFTVIEW software, EASY-UP codici - programming via APP (NFC) "MyPixsys" for Android and iOS devices |
| Software protection | Command/alarm setpoints - Password to access parameters |
