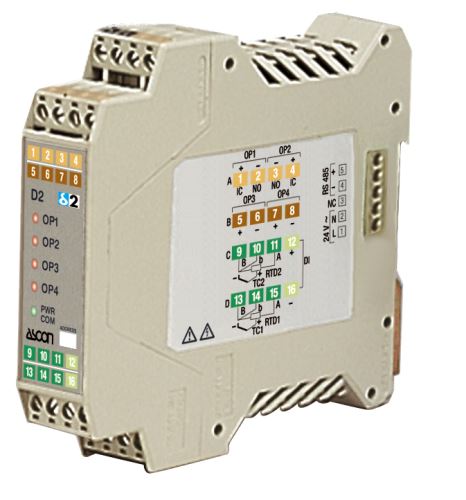

Dual PID controller Ascon Tecnologic D2 5350 0000 with two outputs for SSR
Distributed dual PID controller.
Power supply 24Vacdc, 1 relay, 2x output to SSR, RS485 Modbus/Jbus Slave.
Part of a modular system for a wide range of applications. Integration with PC or PLC possible.
| Power supply | 24 Vac/dc |
| Design (panel size) | DIN |
| Type of regulation | 2xPID |
| Control input | Analog signal |
| Auxiliary digital input | Yes |
| Output - relay | 1x |
| Output for SSR | 2x |
| Producer | Ascon Tecnologic |
Double temperature controller for DIN rail.
Characteristic features:
- Dual process controller with digital outputs
- Compact size (22.5mm DIN width)
- Two additional adjustable digital inputs or outputs
- Two adjustable process inputs and one digital input
- 2 digital outputs
- Power and RS485 on the side for better modularity
- Pull-out electronics
- Backup configuration and parameters for easy replacement and maintenance
| TECHNICAL SPECIFICATIONS | |
|---|---|
| 2x universal input | Thermocouples L, J, T, K, S, R, B, N, E, Ni-NiMo, W3, W5 Pt100 voltage 0/10...50 mV current 0/4...20 mA Self linearization and IR probes (J.K) |
| 1x digital input + 2x additional digital input/output | NPN, TTL, voltage-free |
| 2x digital output + 2x additional digital input/output | Switching relay 2A 250Vac Triac 1A 250Vac sSR output 0...5V 30mA |
| Power supply | 24 Vac/Vdc Converter 18Vdc ±20% |
| Control options | On/Off control Single-acting PID control Up to two independent loops Optional special functions for process start and timing 2+2 stored setpoints Two parameter autotuning modes Configuration and parameter backup with automatic recovery (DX master) |
| Alarms | Up to 4 adjustable alarms |
| Communication | RS485 ModBus RTU and J-bus (slave) |
| Dimensions | 22.5 x 99 x 114.5 mm |
