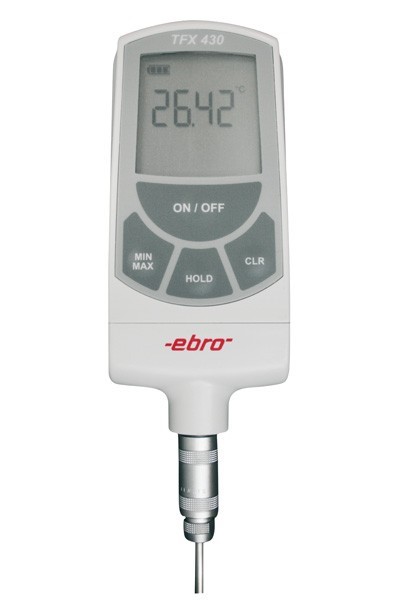

Ebro TFX 430 needle thermometer with TPX 130 probe, -100 to +500°C
Thermometer with extra high accuracy up to ±0.05 °C and 3 x 200 mm needle probe
Over a week
Ebro AX100 extension cable for TFX thermometers with Lemosa connector
In stock
134 EUR excl. VAT162 EUR
- Measuring range -100 to +500°C
- Accuracy up to ± 0.05°C
- Pt 100 sensor
- Waterproof IP67
- Lemo connector
| Measured quantity | Temperature |
| Power supply | Battery |
| Designation | Manual |
| Calibration protocol | Yes |
| Producer | Ebro |
Injection thermometer with extra high accuracy up to ± 0.05°C. The measuring range of this thermometer with the supplied TFX 430 probe (Pt100 type probe) is -100 to +500°C. The thermometer is waterproof (IP67). Other temperature probes can be connected to the thermometer thanks to the interchangeable design with lemosa connector. Of course, the thermometer can be calibrated to prove the accuracy of the measurement.
Features:
- Large display
- Including needle probe O3 x 200 mm, blunt end
- Robust and shockproof
- High accuracy
- Waterproof (IP67)
- Washable
- Replaceable battery
- Four-wire measurement system
| TECHNICAL PARAMETERS | |
|---|---|
| Measuring range | -100 °C ... +500 °C |
| Accuracy | ±0.05 °C (-50 °C...+199.99 °C) ±0.2 °C rest of range |
| Resolution | 0.01 °C (-100 °C...+199.99 °C) 0.1 °C rest of range |
| Sensor type | PT100, replaceable probe (various types) |
| Measurement frequency | 1 .... 15 s |
| Extra functions | Hold, min/max |
| Operating temperature | -20 °C ... +50 °C |
| Storage temperature | -30 °C ... +70 °C |
| Battery | 3V, lithium, CR2477, user replaceable, lifetime approx. 5 years |
| Car. switch off | After 2h, deactivatable |
| Dimensions | 109 x 54 x 22 mm |
| Weight | approx. 90g |
| Coverage | IP67 |
