Euroster 11B thermostat for circulation pump
Automatic control of the circulation pump for DHW heating
In stock
- Maintains the set water temperature level in the DHW tank
- Protects the tank from cooling down
- Adjustable switching hysteresis
- Temperature calibration function
- Clear backlit display
- Temperature probes included
- Promotional price
| Thermostat use (heating type) | For pumps |
| Power supply | 230 Vac |
| Switching signal transmission | Wired |
| Backlit display | Yes |
| Output relay function | Control only / appliance up to 250W |
| Designation | Wall-mounted |
| Producer | Euroster |

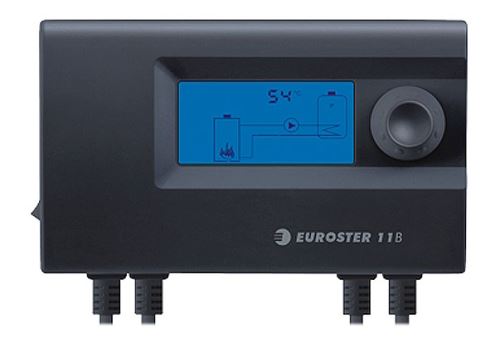

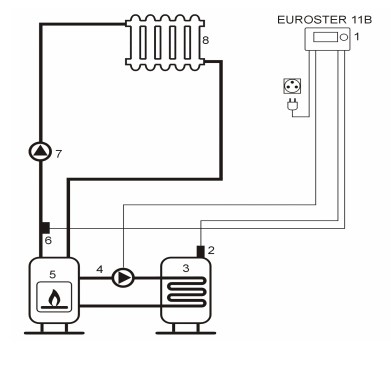

The EUROSTER 11B is a modern microprocessor controller for controlling systems with a hot water tank (DHW) and pump. It ensures the heating of the DHW tank and protects it from unwanted cooling when the boiler is extinguished. The pump is started as soon as the boiler water is hotter than the storage tank water and at the same time if the storage tank temperature is below the desired value.
The EUROSTER 11B is equipped with an ANTYSTOP system that protects the pump rotor from clogging during inactivity. During the non-heating season, the built-in processor of the EUROSTER 11B starts the pump or valve for 30 seconds every 14 days.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 230V 50Hz |
| Power consumption | max. 7 mA (1.6 W) |
| Max output current | 3 A |
| Cable length: device power cable pump power cable probe of the reservoir boiler probe | 1.5 m 1.5 m 5 m 1,5 m |
| Dimensions (W x H x D) | 150 x 90 x 54 mm |
