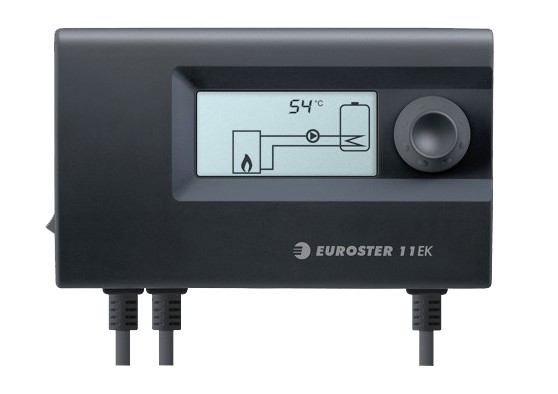

Euroster 11EK thermostat for circulator and auxiliary heat source

Automatic pump control for solid fuel boilers and fireplace inserts with heat exchanger. With the possibility of switching the additional heat source
Euroster 11EK thermostat for circulator and auxiliary heat source
-10 %
List price incl. VAT 65,66 EUR 59,10 EUR 48,84 EUR excl. VAT
In stock
In person in Prague:nowWith a delivery company:tomorrow
Code6-050-EU-021PNpro topné systémy s jedním oběhovým čerpadlem a pomocným zdrojem teplaProducerEurosterWarranty2 years
  • For heating systems with one circulating pump (heating or DHW)
  • 2 operating modes (heating or DHW tank reheating)
  • Possibility of switching an additional heat source
  • Protects the pump against clogging
  • Adjustable hysteresis
  • Temperature calibration function
  • Temperature probes are included
  • Clear backlit display
  • Promotional price

Thermostat use (heating type)For pumps
Power supply230 Vac
Switching signal transmissionWired
Backlit displayYes
Output relay functionControl only / appliance up to 250W
DesignationWall-mounted
ProducerEuroster

Euroster 11EK is a device used to control (switch off/on) the circulator of the heating system depending on the set temperature. The pump can be connected either to the heating circuit or to the DHW circuit.

As soon as the boiler water temperature is higher than the desired temperature (+hysteresis), the pump is started. To prevent the boiler from dewing, the temperature set by the rotary switch must be higher than the dew point temperature in the room. Stopping the pump after the boiler has been extinguished will prevent unwanted cold water flow into the heating system, which would rapidly reduce the temperature in the boiler and radiators.

A specific feature is the ability to switch an additional heat source.

The EUROSTER 11EK is equipped with an ANTYSTOP system that protects the pump from clogging during prolonged inactivity (in summer months). During the non-heating season, the pump starts every 14 days for 30 seconds.

Advantages of EUROSTER 11EK:

  • Selectable hysteresis
  • Clear LCD display - backlit
  • Temperature probes can be corrected
  • Manual pump switching option
TECHNICAL PARAMETERS
Power supply 230V 50Hz
Power input max. 7 mA (1.6 W)
Max. output current 3 A
Cable lengths 1.5 m
Dimensions (W x H x D) 150 x 90 x 54 mm
Hysteresis selectable, 2-10°C
