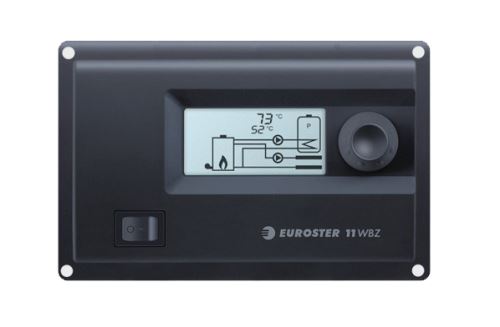

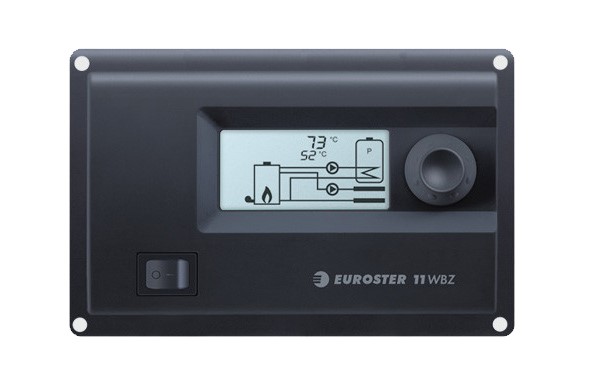

Euroster 11WBZ thermostat for solid fuel boilers with DHW heating
- Control of the blower, heating system circulator and DHW circulation pump
- Controls the blowing force (boiler output) by changing the speed of the boiler blower (pressure fan located in the combustion air intake)
- Terminal block for connecting sensors and outputs (sensors included)
- Adjustable switching hysteresis
- Temperature calibration function
- Clear backlit display
- Promotional price
| Thermostat use (heating type) | For pumps |
| Power supply | 230 Vac |
| Switching signal transmission | Wired |
| Backlit display | Yes |
| Output relay function | Control only / appliance up to 250W |
| Designation | Wall-mounted |
| Producer | Euroster |
EUROSTER 11WBZ is a modern microprocessor controller for controlling systems with solid fuel boiler. The device monitors the boiler water temperature and adjusts the blowing force to achieve the optimum temperature. It also starts the heating circulator and the hot water tank circulator when the desired water temperature is reached.
A single-phase asynchronous blower (push fan located in the combustion air intake) can be connected to the EUROSTER 11WBZ controller to control the boiler output, which operates on 230V 50Hz mains voltage. The speed control is solved by changing the effective value of the supply voltage of the blower (fan).
EUROSTER 11WBZ is equipped with ANTYSTOP system, which protects the pump rotor from clogging during inactivity. During the non-heating season, the unit's built-in processor starts the pump or valve for 30 seconds every 14 days.
EUROSTER 11WBZ advantages:
- Selectable hysteresis
- Clear LCD display - backlit
- Temperature probes can be corrected
- Manual pump/blower switching option
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 230V 50Hz |
| Power input | max. 7 mA (1.6 W) |
| Max pump output current | 2 A |
| Max blower output current | 0.5A (< 100W) |
| Cable lengths: Power cord with fork Heating pump power supply Power supply for storage tank pump Blower power supply Hot water tank probe Boiler outlet probe | 1,5 m 1,5 m 1,5 m 1,5 m 5 m 1,5 m |
| Dimensions (W x H x D) | 150 x 90 x 54 mm |
| Hysteresis | selectable 2-10°C |
