Euroster 6060 thermostat - 3 daily temperatures and window contact
- Three temperature levels: comfort, economy and reduced
- Large, clear, backlit LCD display
- 0.5-hour temperature programming accuracy
- Temporary temperature setting
- Keypad lock
- Constant temperature, holiday mode
- Temperature reading accuracy of 0.1°C
- Ability to turn off thermostat with active temperature frost protection outside of heating season
- Temperature reading correction and display contrast adjustment
- Operation with open window sensor (ventilation function) with selectable operating status - NC/NO and preset temperature
| Thermostat use (heating type) | Spatial |
| Programming cycle | Weekly |
| Power supply | Battery |
| Switching signal transmission | Wired |
| Backlit display | Yes |
| Output relay function | Control / appliance over 1600W |
| Designation | Wall-mounted |
| Producer | Euroster |

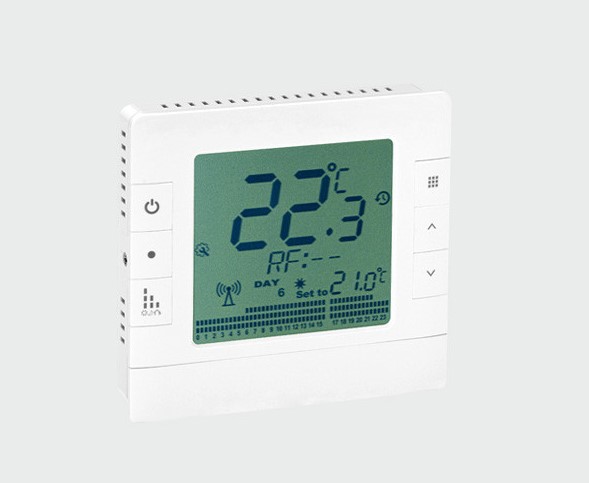

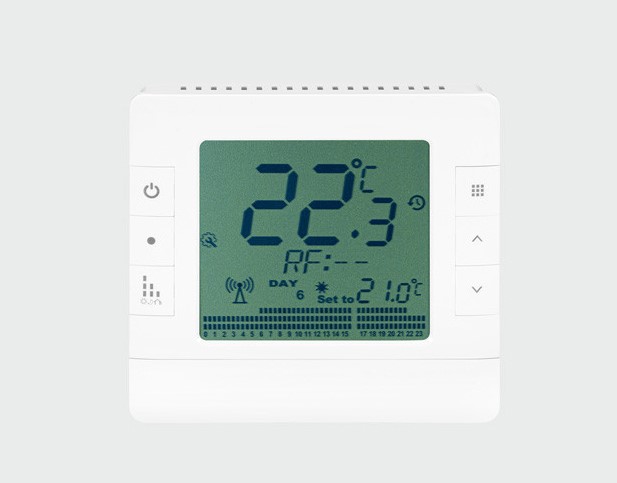

The Euroster 6060 is a modern thermostat designed to control the temperature in living areas from 5 °C to 35 °C. It is used to control the operation of a central heating boiler or other heating equipment. The sensors used in the Euroster 6060 allow temperature reading accuracy of 0.1°C and temperature programming accuracy of 0.2°C.
The Euroster 6060 operates with three temperature levels: comfort (daytime), economy (nighttime) and reduced (absent). Each temperature is adjustable within a range of 5 °C ... 35 °C. The thermostat is programmable in seven-day cycles with a precision of 0.5 hours, therefore allowing 48 temperature changes in 24 hours. Different time periods can thus be programmed for each day of the week.
A unique feature is that it can interact with other elements of the home via a digital (logic) wired input, which can be used to change the preset temperature. For example, it is possible to turn off the heating when a window is opened - ventilation, or to lower the temperature based on an alarm request when leaving the property, etc.
| TECHNICAL PARAMETERS | |
|---|---|
| Controlled device | heating systems |
| Supply voltage | 3V (2 AA alkaline batteries) |
| Output | relay, voltage-free, SPST, max 10A 230V 50 Hz |
| Temperature measuring range | 0 °C to +50 °C |
| Temperature control range | +5 °C to +35 °C |
| Temperature control accuracy | 0,2 °C |
| Accuracy of temperature indications | 0,1 °C |
| Hysteresis range | 0.2 - 1 °C (in 0.2 °C increments) |
| Display | Backlit LCD display |
| Operating temperature | +5 °C to +45 °C |
| Storage temperature | -10 °C to +60 °C |
| Coverage | IP20 |
| Temperature controller class | I |
