Euroster 813 BOX thermostat for solar panels
Pump controller for solar thermal water heating in swimming pools and hot water
In stock
- 3 temperature inputs and 2 pump outputs
- Solar collector pump control
- Battery backup in case of power failure
- 4 operating modes
- Programmed functions for both storage tank and collector protection
- Illuminated clear display
- Mounting box with cover included
- Temperature probes included
- Promotional price
| Output relay function | Control / appliance over 1600W |
| Power supply | 230 Vac |
| Backlit display | Yes |
| Thermostat use (heating type) | Solar panels |
| Programming cycle | No programming |
| Switching signal transmission | Wired |
| Designation | Built-in |
| Producer | Euroster |

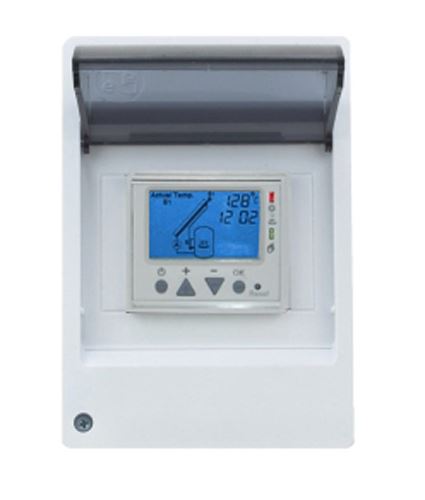

Euroster 813 is a DIN rail controller for home heating systems with solar panel. It is designed for differential temperature control of one solar collector and up to 2 hot water tanks, depending on the selected operating mode. The device is capable of controlling an auxiliary heat source such as a boiler or an electric heater. The auxiliary output can be switched on according to the selected time program. The user can select one of four operating modes. Depending on the selected mode, the unit then controls one or two circulators. In the BOX version, the thermostat is supplied with a mounting box equipped with a transparent hinged front cover.
Advantages of the Euroster 813BOX thermostat:
- simple installation and easy operation
- battery backup in case of power failure
- automatic protection of pumps against clogging
- automatic protection of the tank and collector against overheating
- selectable hysteresis for both outlets
- output B can be time controlled
- all sensors can be temperature calibrated
- anti-legionella function protects the reservoir against bacterial growth
- supplied with mounting box.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 100 - 240V AC 50/60Hz |
| Output A | power 7A/250V AC |
| Output B | power 16A/250V AC |
| power consumption of the device | max 4VA |
| S1 collector probe | PT1000, -40 to 250°C, ±5°C |
| Collector probes S2 and S3 | NTC. -10 to 110°C, ±0.5°C |
| Probe cable lengths | 2m |
| design | DIN 35mm |
| Probe calibration | -10 to +10°C |
| Battery backup | 100h |
| Dimensions (w,h,d) | 52.5 x 85 x 60 mm |
| Backlight | blue 10s |
