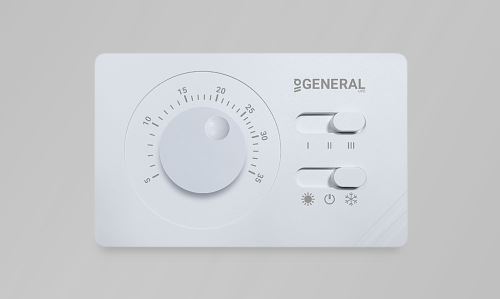

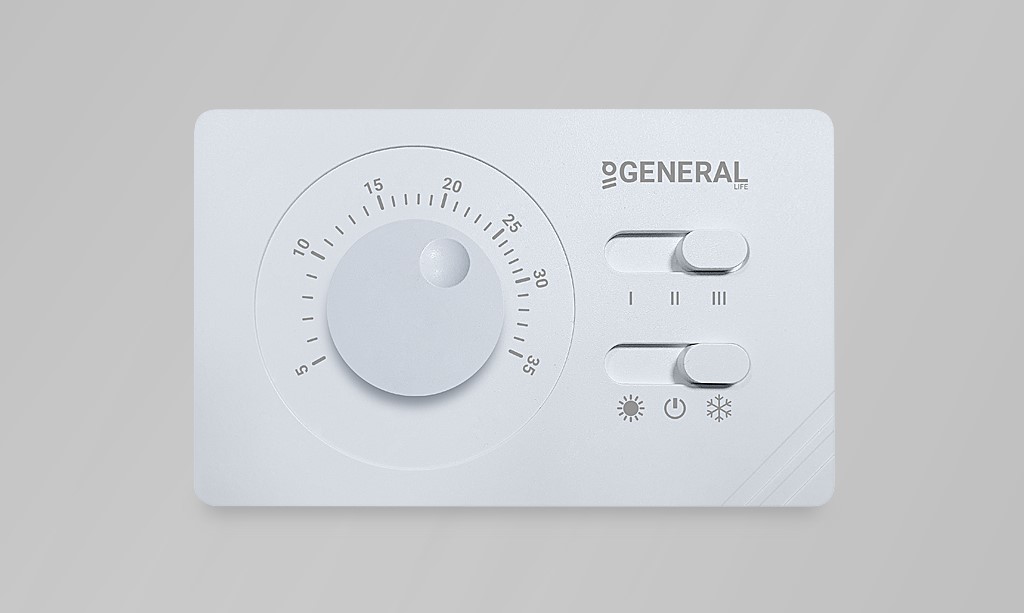

General Life FC100 Room Thermostat for Fan-Coil Units
Room thermostat for fan coil units, supporting cooling or heating of the room.
In stock
- Simple operation
- 3 fan speeds of the Fancoil unit
- Suitable for 2-pipe fancoil
- Switch for cooling or heating function or to switch off the unit
- Wheel for setting the desired room temperature
- 5 year warranty
| Thermostat use (heating type) | Spatial |
| Programming cycle | No programming |
| Power supply | 230 Vac |
| Switching signal transmission | Wired |
| Output relay function | Control / appliance over 1600W |
| Designation | Wall-mounted |
| Producer | General Life |
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 110...230Vac 50/60Hz |
| Temperature measurement accuracy | 0,1°C |
| Operating sensitivity | 0,5°C |
| Temperature setting range | +5...+35°C |
| Operating temperature | -10...+50°C |
| Output relay | 8A (277Vac) resistive load 8A (30Vdc) resistive load |
| Dimensions | 90 x 145 x 29.8 mm |
DescriptionTechnical parametersDownload
