GLGL wrap cable for K thermocouples
GLGL wrap / K / 2x 0.2 mm thermocouple line, use up to +400 °C
On request

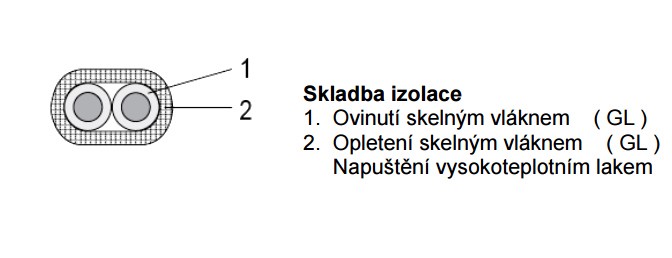

- Thermocouple lines insulated with glass fibre
- Insulation temperature resistance from -25 to +400°C
- Parallel conductor routing
- Design 2x wire O0,2mm
- External cable O 0,6 x 1mm
- Version K
- Meets IEC 60584
- Price per 1m length
| Producer | Mavis |
Thermocouple connection lines. For use in dry areas under light mechanical stress.
| TECHNICAL PARAMETERS | |
|---|---|
| Number of wires | 2x solid wire Wires in parallel |
| O of conductors | 0,2mm |
| Outer O of cable | 0.6 x 1.0mm |
| Insulation temperature resistance | -25 ... +400°C |
