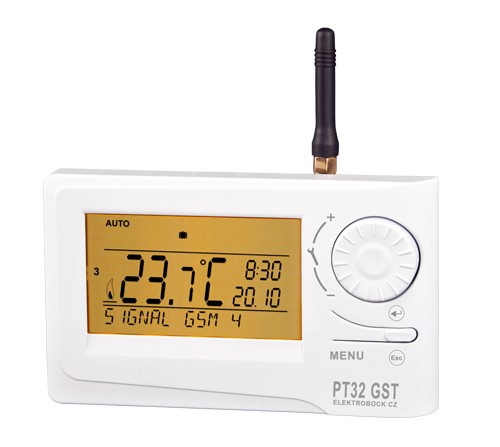

Elektrobock PT32 GST GSM room thermostat with weekly program
Digital weekly thermostat controlled by mobile phone
On request
- 2 independent weekly programmes
- Unlimited data storage
- Two-way communication via SMS
- Calendar to 2025
- Automatic summer/winter time changeover
| Thermostat use (heating type) | Spatial |
| Programming cycle | Weekly |
| Power supply | 230 Vac |
| Switching signal transmission | GSM/WiFi |
| Backlit display | Yes |
| Output relay function | Control / appliance up to 1600W |
| Designation | Wall-mounted |
| Producer | Elektrobock |
Smart thermostat with remote control via mobile phone. With a short text message it is possible to change the desired temperature or switch off the boiler.
Features of the PT32 GST digital thermostat:
PT32 GST is an intelligent room digital thermostat with implemented GSM module. It is suitable for all boilers that require potential-free (voltage-free) switching contacts (e.g. gas boilers, electric boilers, circulators, thermoelectric drives or air-conditioning units).A new feature is PID control - the most advanced continuous control, which not only achieves short control times but also high accuracy without permanent control deviation.
Advantages of PT32 GST:
- 9 weekly programs
- 6 temperature changes per day
- programming in 10-minute increments and 0.5 °C
- possibility of programming by day or Mon-Fri, Sat-Sun and Mon-Sun
- large clear backlit graphic display
- intuitive navigation in the selected language (CZ/PL/EN/DE/RU/SVK)
- possibility to set HYSTEREZE, PI control or PID control
- premature heating switch-on function
- possibility of connecting an external sensor, e.g. for monitoring the floor temperature
- selection of HEATING/COOLING mode
- short-term change of the desired temperature
- manual mode (MANU)
- permanent switch-off (OFF)
- mODE ALLOWED
- summer mode
- even-odd week selection
- correction of the current temperature
- key lock
- sum of boiler operating hours
- boiler maintenance indication
- frost protection (3 °C)
- tEST function
- automatic change of summer/winter time
- service password
- power supply 5 V/ DC, 2.5 A, type AD05 - Jack (included)
- back-up for clock operation alkaline batteries 2 x 1.5 V/AA (not included)
- output (potential-free contact) max. 5 A/ 250 V AC
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 5 V/DC, 2.5 A, type AD05-Jack |
| GSM module | SIM 900 |
| Antenna | direct 1 dB, SMA connector |
| Number of adjustable temperatures | 6 per day |
| Hysteresis | 0.1°C to 6°C |
| Switching element | relay |
| Min. programming time | 10 min |
| Setting range. temperatures | +3°C to +39°C |
| Temperature setting | 0.5°C increments |
| Min. indication jump | 0,1°C |
| Measurement accuracy | ±0,5°C |
| Battery lifetime | heating season |
| Clock running backup | 2x1.5V alkaline AA batteries, not included |
| Degree of protection | IP20 |
| Output | max. 5 A |
| Operating temperature | 0°C to +40°C |
