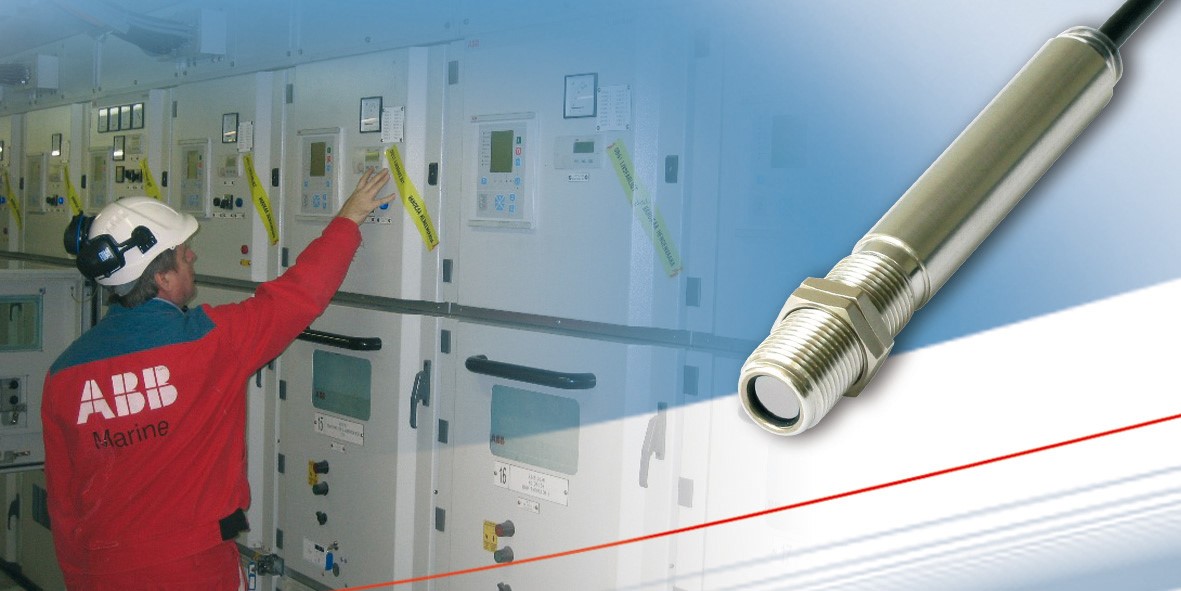

Infrared temperature sensor Optris CTLT20
temperature range -50...+975°C, optics 22:1, analog output 0-5/10V
On request
- One of the world's smallest pyrometers
- Measuring sensor with a diameter of 14mm (6Hr) and a length of only 32mm
- Temperature resistance of the sensor up to 180°C without additional cooling
| Temperature sensor type | Infrared |
| Cable length | 1m |
| Measured quantity | Temperature |
| Measuring part of the sensor | Spatial |
| Measured temperature range | -30..+80°C, -40..+110°C, -50..+120°C, -50..+150°C, -50..+250°C, -50..+400°C, worse than -30..+80°C, above +400°C |
| Producer | Optris |
| TECHNICAL PARAMETERS | |
|---|---|
| Sensor type | Infrared |
| Measuring range | -50...+975°C |
| Spectral range | 8...14 µm |
| Optical resolution (90% energy) | 22:1 |
| Output | 0...5V, 0...10V 0...20mA, 4...20mA j, K thermocouple |
| Cable | 1m |
| Power supply | 8...36V max. 100mA |
| Accuracy | ±1% or ±1°C |
| Response time | 150 ms |
| Coverage | IP65 |
