Pego ECP200 Base4 - Wall-mounted control panel for cold stores

Wall-mounted 1F controller for cold stores with compressor up to 1500W
Pego ECP200 Base4 - Wall-mounted control panel for cold stores
Pego ECP200 Base4 - Wall-mounted control panel for cold stores
Pego ECP200 Base4 - Wall-mounted control panel for cold stores (1)
Pego ECP200 Base4 - Wall-mounted control panel for cold stores (2)
158 EUR 131 EUR excl. VAT
On request
In person in Prague:on requestWith a delivery company:on request
CodePE-010-150PNmontáž na stěnu, napájení 230 Vstř, 5x relé, 2x NTC sonda, RS485ProducerPegoWarranty2 years
  • Control panel for refrigeration plants with single-phase compressor
  • Designed for compressors up to 2HP
  • Active defrost
  • IP65 protection
  • For control of compressor, defrost, evaporator fan, lighting
  • Alarm relay with option to set to auxiliary output
  • Includes two temperature probes
  • RS485 communication
Power supply230 Vac
Design (panel size)Other
Type of regulationOn/off
Control inputTemperature sensor
Output - relay5x
Display digit colourRed
ProducerPego

Complete control of single-phase cooling systems up to 2 HP, including defrost control. Defrosting is supported both actively (by reversing the circuit or heating coils) and passively.

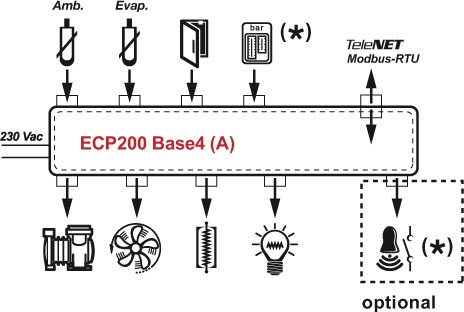

Direct control of the compressor, defrost, evaporator fan and lighting with direct outputs to individual devices, or voltage-free contacts for control of the condensing unit with its own electrical control.
The auxiliary relay is configurable parameters (alarm, setpoint, direct control via front buttons, door heating, remote control of the condensing unit motor, control of the solenoid valve to allow possible pump-down operation of the compressor).
RS485 for connection to Telenet monitoring system or output to standard Modbus-RTU protocol.
Easy to install and use thanks to large display and 6 control buttons. The box is IP65 rated. The maximum total load including all connected peripherals (compressor, defrost, fan etc) is 16A.

TECHNICAL PARAMETERS

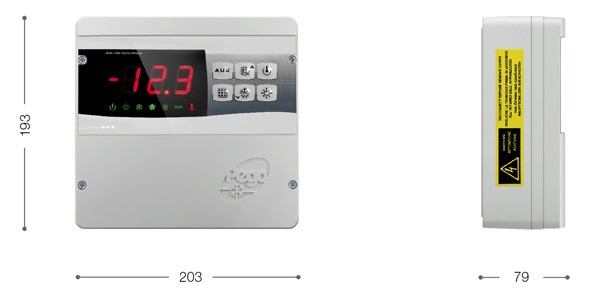

Dimensions 193 x 79 x 203 mm
Weight 0.6 kg
Power supply 230 V AC ± 10% 50/60 HZ
Consumption ~ 7 VA
Working conditions -10 ... +60°C, < 90% Rh
Storage conditions -10 ... +70°C, < 90% Rh
Temperature sensors NTC 10 k?
Resolution 0,1 °C
Accuracy ± 0,5 °C
Range -45 ... +45 °C
Outputs (relays) Compressor: 30A
Defrost: 30A
Fan: 16A
Light: 16A
Configurable Alarm/Aux output: 8A
Coverage IP65
Communication RS485 Telenet, Modbus-RTU
Isolation type Class II
