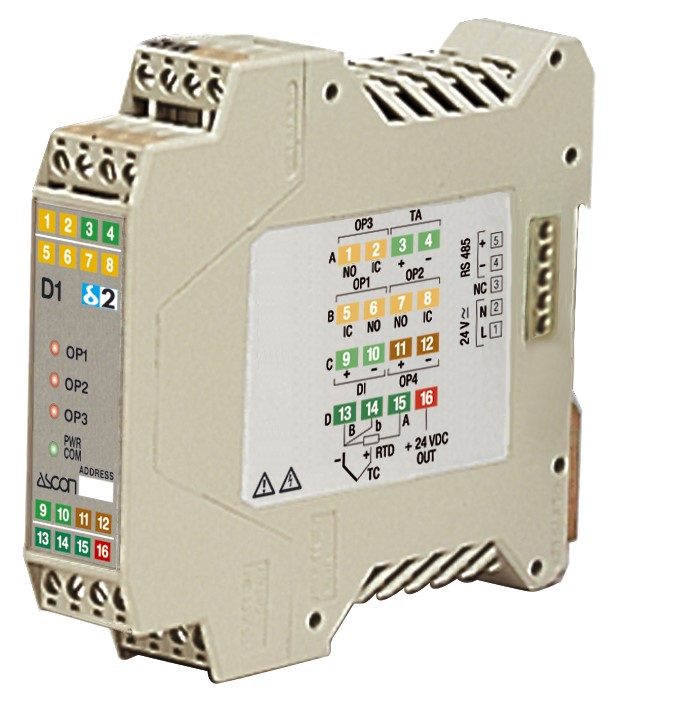

PID controller Ascon Tecnologic D1 5050 0000 with load control
Distributed PID controller with load control,1 mod. DIN, power supply 24Vac/dc, 1 relay, CT input (for current transformer) , RS485, Modbus/Jbus Slave
On request
Distributed PID controller with load control by current transformer
Power supply 24Vac/dc, 1 relay, CT input (for current transformer), RS485 Modbus/Jbus Slave.

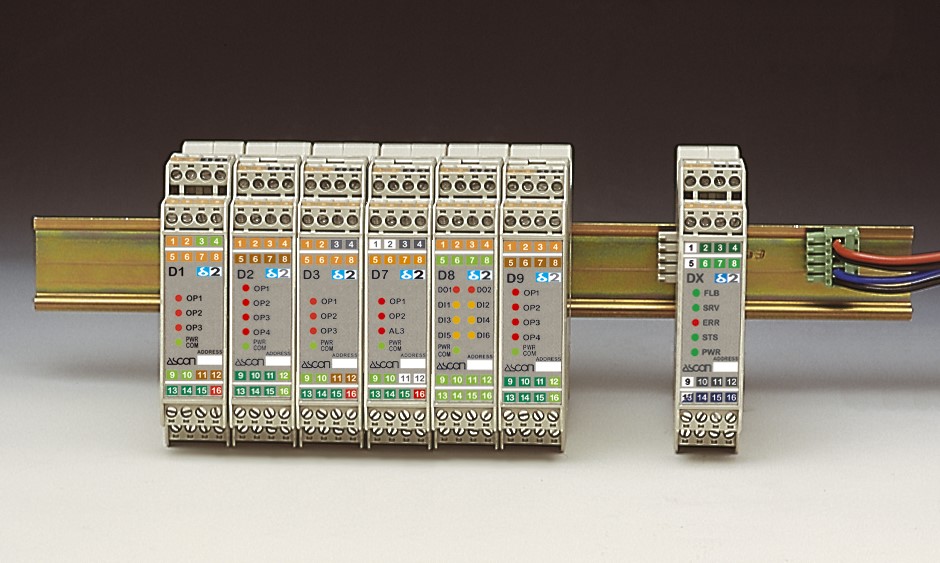

Part of a modular system for a wide range of applications. Integration with PC or PLC possible.
Power supply 24Vac/dc, 1 relay, CT input (for current transformer), RS485 Modbus/Jbus Slave.
Part of a modular system for a wide range of applications. Integration with PC or PLC possible.
| Power supply | 24 Vac/dc |
| Design (panel size) | DIN |
| Type of regulation | PID |
| Control input | Analog signal |
| Auxiliary digital input | Yes |
| Output - relay | 1x |
| Producer | Ascon Tecnologic |
DIN rail temperature controller with current measuring transformer.
Characteristic features:
- Compact size (DIN width 22,5mm)
- Process controller with digital outputs
- Adjustable process inputs, auxiliary input for current transformer and one digital input
- Up to 4 digital outputs
- Optional special functions for process start and timing
- Power and RS485 on the side for better modularity
- Pull-out electronics
- Backup configuration and parameters for easy replacement and maintenance
| TECHNICAL PARAMETERS | |
|---|---|
| 1x universal input | Thermocouples L, J, T, K, S, R, B, N, E, Ni-NiMo, W3, W5 Pt100 voltage 0/10...50 mV current 0/4...20 mA Self linearization and IR probes (J.K) |
| 1x digital input | NPN, TTL, voltage free |
| 4x digital output | 2A 250Vac switching relay Triac 1A 250Vac sSR output 0...5V 30mA |
| Power supply | 24 Vac/Vdc Converter 18Vdc ±20% |
| Control options | On/Off control Single-acting PID control Optional special functions for process start and timing 2 stored setpoints Two parameter autotuning modes Configuration and parameter backup with automatic recovery (DX master) |
| Alarms | Up to 3 adjustable alarms |
| Communication | RS485 ModBus RTU and J-bus (slave) |
| Dimensions | 22.5 x 99 x 114.5 mm |
