PID controller Ascon Tecnologic KM1 HCRR-D with three outputs

Intelligent process PID controller with advanced features, universal input, 100-240 Vacdc power supply, two output relays and one universal digital input or output for SSR.
PID controller Ascon Tecnologic KM1 HCRR-D with three outputs
PID controller Ascon Tecnologic KM1 HCRR-D with three outputs
PID controller Ascon Tecnologic KM1 HCRR-D with three outputs (1)
PID controller Ascon Tecnologic KM1 HCRR-D with three outputs (2)
157 EUR 130 EUR excl. VAT
On request
In person in Prague:on requestWith a delivery company:on request
Code4T-300-130PNvstup tč,Pt100,mA,V, napájení 240 Vstř, výstup 1x relé, 1x SSRProducerAscon TecnologicWarranty2 years

Dixell XH20P-I humidity probe

Dixell XH20P-I humidity probe
In stock
134 EUR excl. VAT163 EUR

Pt100 temperature probe Pixsys BS 4x40 3m

Pt100 temperature probe Pixsys BS 4x40 3m
Ordered from manufacturer
21,36 EUR excl. VAT25,85 EUR

Temperature probe - thermocouple Tecnologic FeCo - type J

Temperature probe - thermocouple Tecnologic FeCo - type J
In stock
16,02 EUR excl. VAT19,38 EUR
  • PID controller with advanced automatic parameter tuning
  • Energy saving function
  • Operating hours counter
  • Wattmeter
  • Variable colour display depending on control deviation
  • User-adjustable sequence of displayed parameters in the menu

Comparison of the Ascon Tecnologic range of industrial controllers:

KM1 KX1 KR1 KM3 KX3 KR3 K32 K39
Dimensions (mm) 48 x 48 48 x 96 78 x 35 48 x 48 48 x 96 78 x 35 78 x 35 78 x 35
Power supply 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 12, 24, 100-240 Vacdc 12, 24, 100-240 Vacdc
Display 3-colour dynamic 3-colour dynamic 3-colour dynamic 3-colour dynamic 3-colour dynamic 3-colour dynamic 2-line 2-line
Analog input TcJ, TcK, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA TcJ, TcK, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA TcJ, TcK, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA Universal Universal Universal TcJ, TcK, TcR, TcS, TcT, PTC, NTC, Pt100, mV, V, mA TcJ, TcK, TcR, TcS, TcT, PTC, NTC, Pt100, mV, V, mA
Digital input 2x 2x 2x 2x 2x 2x 2x
Relay / output for SSR 4x 4x 4x 4x 4x 4x 4x 2x
Analog output 1x optional 1x optional 1x optional
Retransmit setpoint yes yes yes
On/Off and PID control yes yes yes yes yes yes yes yes
Regulation of actuators yes yes yes yes
optional 3PT mode		 yes
optional 3PT mode		 yes
optional 3PT mode
RS485 optional slave optional slave optional slave optional Master + slave optional Master + slave optional Master + slave optional Master + slave
Timer function optional optional optional optional optional optional optional optional
Programmer functions optional optional optional optional optional

Power supply230 Vac
Design (panel size)48 x 48 mm
Type of regulation2xPID
Control inputUniversal
Auxiliary digital inputYes
Output - relay2x
Output for SSR1x
Display digit colourVariable
ProducerAscon Tecnologic

Ascon Tecnologic KM1 is a new generation intelligent PID controller with many features. Synthesizing the latest trends in precision control with the long-tested features of earlier Ascon and Tecnologic products, it maintains continuity including both programming methods. Superior features of the Kube series include:

  • Enables On/Off, On/Off with Neutral Zone, PID single-acting and dual-acting control, including several automatic parameter tuning options

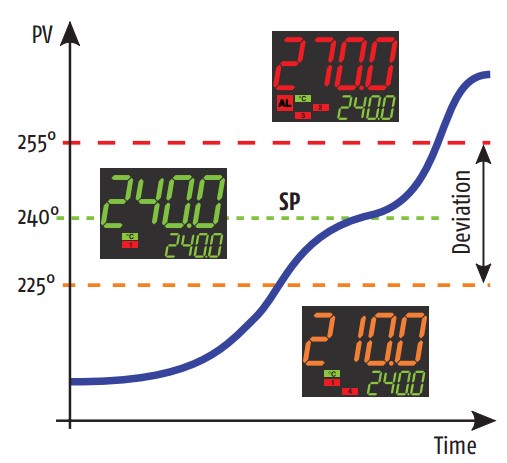

  • Colour changeable display depending on control deviation, with economy mode option
  • User calibration of input variable
  • Small footprint - depth is half that of other instruments in this category
  • Rich options for automatic tuning of PID constants, minimizing the need to experiment with settings
  • Operating hour counter function including generation of maintenance alerts for a set time
  • Wattmeter function - displays current consumption, hourly and total consumption during program run
  • Possibility to set up to 4 setpoints and 3 alarms
  • One universal contact configurable as output for SSR / digital input / Power transmitter

TECHNICAL PARAMETERS
Power supply 100...240 Vacdc ±10%
Consumption max. 7 VA
Display Two line
dynamic color according to control deviation
Universal input Thermocouples J, K, S, R, T
IR sensors J or K
Pt100 (3 wire), Pt1000 (2 wire)
0/12...60mV, 0/4...20mA, 0/1...5V, 0/2...10V
Digital input 1x adjustable
1x adjustable (instead of output)
Outputs 1x SPST 4A 240 Vac
1x SPST 2A 240 Vac
1x output for SSR 13V 1mA (10,5V 22mA) (instead of 2nd dig. input)
Accuracy ±0.5% ±1 digit

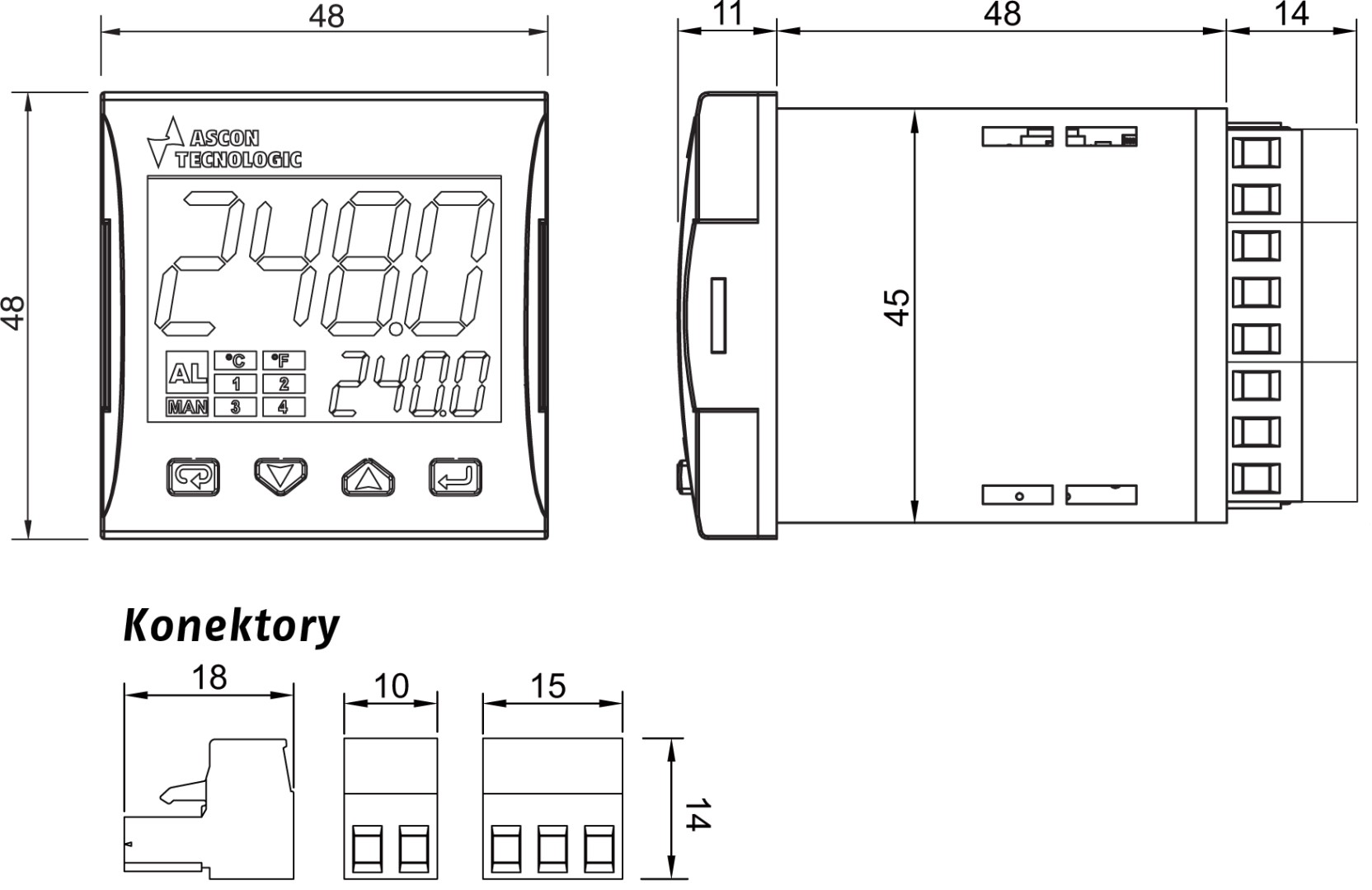

Dimensions 48 x 48 x 62 mm
