PID controller Ascon Tecnologic KR1 HCORRD with four outputs

Ascon Tecnologic KR1 is a new generation intelligent PID controller with many features. Synthesizing the latest trends in precision control with the long-tested features of earlier Ascon and Tecnologic products, it maintains continuity including both programming methods. Superior features of the Kube series include:

• Enables On/Off, On/Off with Neutral Zone, PID single-acting and dual-acting control, including several automatic parameter tuning options

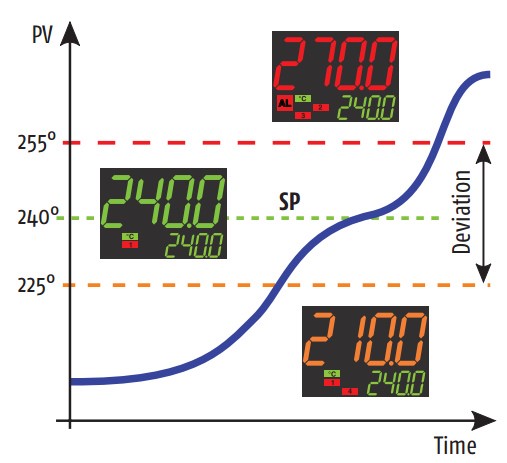

• Colour changeable display depending on control deviation, with economy mode option
• User calibration of input variable
• Small footprint - depth is half that of other instruments in this category
• Rich options for automatic tuning of PID constants, minimizing the need to experiment with settings
• Independent timer function with 5 different operating modes, possibility to control the timer via digital inputs (optional feature)
• Heating curve programming function allows setting up to 8 segments/steps (4 ramps and 4 durations) with many options for further adjustment (optional feature)
• Operating hours counter function including generation of maintenance reminders for a set time
• Wattmeter function - displays current consumption, hourly and total consumption during program run
• Possibility to set up to 4 setpoints and 3 alarms
• One universal contact configurable as output for SSR / digital input / Power transmitter
