PID controller Ascon Tecnologic KX6 HBMM--P for servo drive control with feedback

Intelligent process PID controller for servo drive control. Auxiliary input for position potentiometer, two digital auxiliary inputs.
PID controller Ascon Tecnologic KX6 HBMM--P for servo drive control with feedback
PID controller Ascon Tecnologic KX6 HBMM--P for servo drive control with feedback
PID controller Ascon Tecnologic KX6 HBMM--P for servo drive control with feedback (1)
488 EUR 403 EUR excl. VAT
On request
In person in Prague:on requestWith a delivery company:on request
Code4T-300-222PNrozměr 48x96 mm, vstup J,K,R,S,T,mA,napájení 100-240 Vstř, výstup 2x reléProducerAscon TecnologicWarranty2 years
  • PID controller with advanced automatic parameter tuning
  • Version designed for servo drive control, with 3PT control mode
  • Energy saving functions

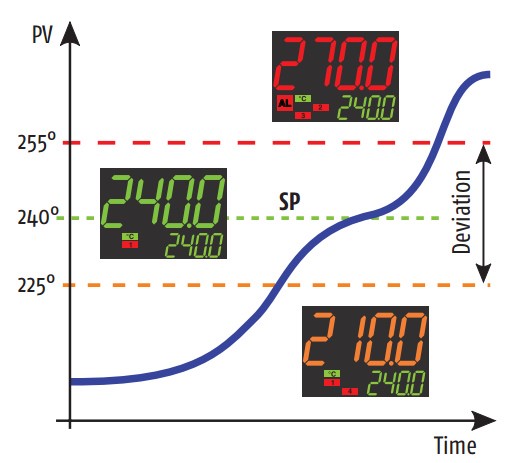

  • Variable colour display depending on the control deviation
  • User-adjustable sequence of displayed parameters in the menu
  • Two digital auxiliary inputs
  • Two output relays
  • Input for feedback potentiometer

Comparison of Ascon Tecnologic's advanced industrial Kube series controllers:

KR1 KM3 KX3 KR3 KM5 KX5 KR5 KX6
Dimensions (mm) 78 x 35 48 x 48 48 x 96 78 x 35 48 x 48 48 x 96 78 x 35 48 x 96
Power supply 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc
Display 3-colour dynamic 3-colour dynamic 3-colour dynamic 3-colour dynamic 3-colour dynamic 3-colour dynamic 3-colour dynamic 3-colour dynamic
Analog input TcJ, TcK, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA TcJ, TcK, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA TcJ, TcK, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA TcJ, TcK, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA TcJ, TcK, TcN, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA TcJ, TcK, TcN, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA TcJ, TcK, TcN, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA TcJ, TcK, TcS, TcR, TcT, mA
potentiometer input
Digital input 2x 2x 2x 2x 2x 2x 2x 2x
Relay / output for SSR 4x 4x 4x 4x 4x 4x 4x 4x
Analog output 1x optional 1x optional 1x optional 1x optional 1x optional 1x optional 1x optional
Retransmission of the requested value yes yes yes yes yes yes
On/Off and PID control yes yes yes yes yes yes yes yes
Regulation of actuators yes yes
optional 3PT mode		 yes
optional 3PT mode		 yes
optional 3PT mode		 yes
optional 3PT mode		 yes
optional 3PT mode		 yes
optional 3PT mode		 yes
3PT mode
RS485 optional slave optional Master + slave optional Master + slave optional Master + slave optional Master + slave optional Master + slave optional Master + slave optional slave
Timer function optional optional optional optional optional optional optional
Programmer functions optional optional optional optional optional optional

Power supply230 Vac
Design (panel size)48 x 96 mm
Type of regulation2xPID
Control inputUniversal
Auxiliary digital inputYes
Output - relay2x
Display digit colourVariable
ProducerAscon Tecnologic

Ascon Tecnologic KX6 is a new generation intelligent PID controller for servo drive control, equipped with many features. Synthesizing the latest trends in precision control with the long-tested features of earlier Ascon and Tecnologic products, it maintains continuity including both programming methods. Superior features of the Ascon Tecnologic KX6 series include:

  • Open / Closed loop servo drive control
  • Linear or time-proportional control
  • Real or calculated position indication
  • Input for servo position feedback potentiometer with self-calibration
  • Advanced functions for automatic tuning of PID parameters, automatic learning of actuator speed
  • EvoGreen function for energy saving and easy alarm detection
  • Possibility to set up to 4 setpoints and 2 alarms

TECHNICAL PARAMETERS
Power supply 100...240 Vac ±10%
Consumption max. 7 VA
Display Three line
dynamic color according to control deviation
Universal input Thermocouples J, K, S, R, T
0/4...20mA
input for position feedback potentiometer
Digital input 2x adjustable
Outputs 2x SPST 2A 240 Vac
Accuracy ±0.5% ±1 digit
Dimensions 48 x 96 x 76 mm
