PID controller Ascon Tecnologic KX6 HBMMRR for servo drive control
Intelligent process PID controller for servo drive control
On request
- PID controller with advanced automatic parameter tuning
- Version designed for servo drive control, with 3PT control mode
- Energy saving functions
- Variable colour display depending on the control deviation
- User-adjustable sequence of displayed parameters in the menu
- One digital auxiliary input
- Two output relays
Comparison of Ascon Tecnologic's advanced industrial Kube series controllers:
| KR1 | KM3 | KX3 | KR3 | KM5 | KX5 | KR5 | KX6 | |
| Dimensions (mm) | 78 x 35 | 48 x 48 | 48 x 96 | 78 x 35 | 48 x 48 | 48 x 96 | 78 x 35 | 48 x 96 |
| Power supply | 24, 100-240 Vacdc | 24, 100-240 Vacdc | 24, 100-240 Vacdc | 24, 100-240 Vacdc | 24, 100-240 Vacdc | 24, 100-240 Vacdc | 24, 100-240 Vacdc | 24, 100-240 Vacdc |
| Display | 3-colour dynamic | 3-colour dynamic | 3-colour dynamic | 3-colour dynamic | 3-colour dynamic | 3-colour dynamic | 3-colour dynamic | 3-colour dynamic |
| Analog input | TcJ, TcK, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA | TcJ, TcK, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA | TcJ, TcK, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA | TcJ, TcK, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA | TcJ, TcK, TcN, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA | TcJ, TcK, TcN, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA | TcJ, TcK, TcN, TcS, TcR, TcT, Pt100, Pt1000, PTC, NTC, mV, V, mA | TcJ, TcK, TcS, TcR, TcT, mA potentiometer input |
| Digital input | 2x | 2x | 2x | 2x | 2x | 2x | 2x | 2x |
| Relay / output for SSR | 4x | 4x | 4x | 4x | 4x | 4x | 4x | 4x |
| Analog output | 1x optional | 1x optional | 1x optional | 1x optional | 1x optional | 1x optional | 1x optional | |
| Retransmission of the requested value | yes | yes | yes | yes | yes | yes | ||
| On/Off and PID control | yes | yes | yes | yes | yes | yes | yes | yes |
| Regulation of actuators | yes | yes optional 3PT mode | yes optional 3PT mode | yes optional 3PT mode | yes optional 3PT mode | yes optional 3PT mode | yes optional 3PT mode | yes 3PT mode |
| RS485 | optional slave | optional Master + slave | optional Master + slave | optional Master + slave | optional Master + slave | optional Master + slave | optional Master + slave | optional slave |
| Timer function | optional | optional | optional | optional | optional | optional | optional | |
| Programmer functions | optional | optional | optional | optional | optional | optional |
| Power supply | 230 Vac |
| Design (panel size) | 48 x 96 mm |
| Type of regulation | 2xPID |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | 2x |
| Display digit colour | Variable |
| Producer | Ascon Tecnologic |
Ascon Tecnologic KX6 is a new generation intelligent PID controller for servo drive control, equipped with many features. Synthesizing the latest trends in precision control with the long-tested features of earlier Ascon and Tecnologic products, it maintains continuity including both programming methods. Superior features of the Ascon Tecnologic KX6 series include:
- Open / Closed loop servo drive control
- Linear or time-proportional control
- Real or calculated position indication
- Optional input for servo position feedback potentiometer with self-calibration
- Advanced PID auto-tuning functions, automatic learning of actuator speed
- EvoGreen function for energy saving and easy alarm detection
- Possibility to set up to 4 setpoints and 2 alarms
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 100...240 Vac ±10% |
| Consumption | max. 7 VA |

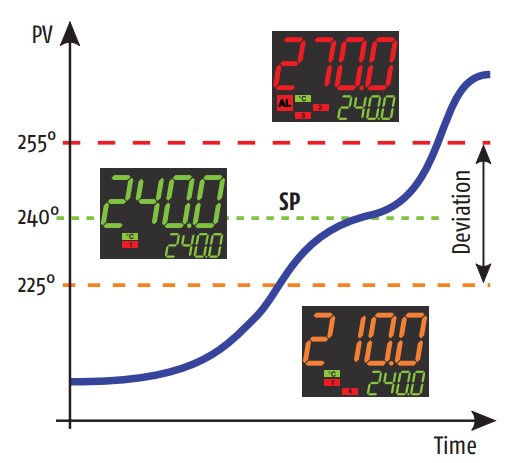

| Display | Three line dynamic color according to control deviation |
| Universal input | Thermocouples J, K, S, R, T 0/4...20mA |
| Digital input | 1x adjustable |
| Outputs | 2x SPST 2A 240 Vac |
| Accuracy | ±0.5% ±1 digit |
| Dimensions | 48 x 96 x 76 mm |
