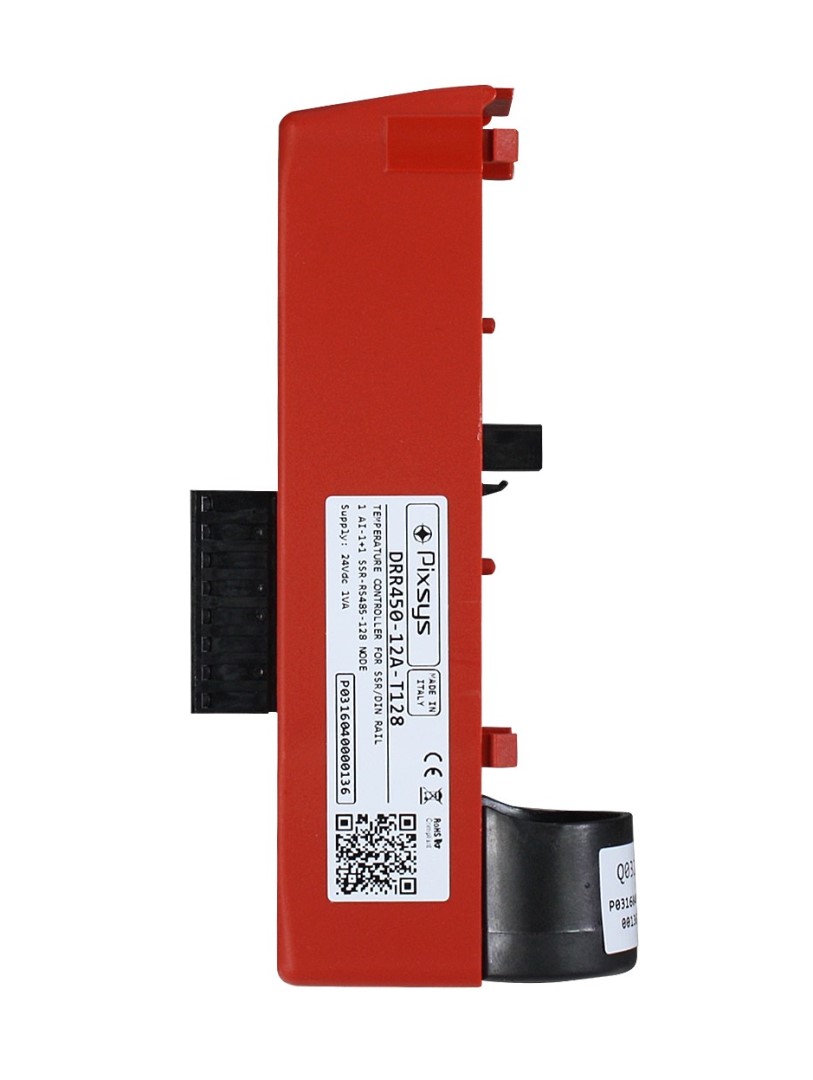

PID controller Pixsys DRR450 12A on DIN including SSR relay 30A
DIN rail mounted PID temperature controller with integrated SSR relay 30A.
On request
Required accessories
Solid State Relay Celduc SUL963460 for DIN57,40 EUR- Compact PID cooling/heating controller with integrated SSR
- DIN rail mounting, only 22.5mm wide
- Analog temperature input
- SSR integrated 30A output
- SSR auxiliary output
- RS485
- Load monitoring via integrated measuring transformer
| Power supply | 24 Vac/dc |
| Design (panel size) | DIN |
| Type of regulation | 2xPID |
| Control input | Temperature sensor |
| Output - relay | 0x |
| Output for SSR | 1x |
| Communication Bus | RS485 |
| Producer | Pixsys |
Pixsys, a manufacturer of control technology for industry with a focus on high temperature processes, has launched a new compact PID temperature controller. The Pixsys DRR450 comes as an answer to the requirements of small size and simple wiring. It incorporates the latest Pixsys technology into a 30A (optionally up to 50A) solid state relay (SSR) DIN case from Celduc's ESUC series.
The result is a compact solution for applications in a variety of fields, such as:
- plastic extrusion and injection molding
- packaging machines (sealing, packaging)
- firing and drying lines in electric tunnel furnaces
- multi-zone thermal protection systems
Basic information:
- Compact DIN housing - width from 22.5mm to max. 49.5mm (for larger power units)
- Optional input for thermocouple type K / J / R / E , PID control
- Integrated 50A current transformer for load monitoring
- RS485 serial communication, optically isolated
- Modbus RTU / Slave protocol, baud rate selectable from 9600
- Alarm and/or diagnostics up to 115000 Baud functions ( reg. loop interrupt alarm / heating interrupt alarm)
- Plug-in connectors for direct connection to SSR 25A to 50A
- Ideal connection for Pixsys operator panels or PLCs for monitoring/supervision (e.g. TD700)
To order with a differently powered SSR, please contact us.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24 Vacdc ±10% 50/60 Hz (galvanically isolated) |
| Power input | 1 W |
| Operating conditions | Temperature 0-45 °C, humidity 35..95 % |
| Inputs | 1x configurable - Thermocouples K, J, T, E 1x Integrated T.A. with 50A FS - 0.1A resolution |
| Outputs | 1 SSR integrated 5 V - 20 mA 1 SSR auxiliary 24 Vdc - 50 mA max Serial communication RS485 Modbus RTU - Slave (9600...115000 Baud) |
| Control algorithm | ON - OFF with hysteresis, P., P.I., P.I.D., P.D. |
| Alarm mode | Absolute/Relative, Band, Upper/Lower Deviation. Loop Break Alarm function |
| Automatic/manual function | Percentage output control command with automatic change in case of sensor error |
