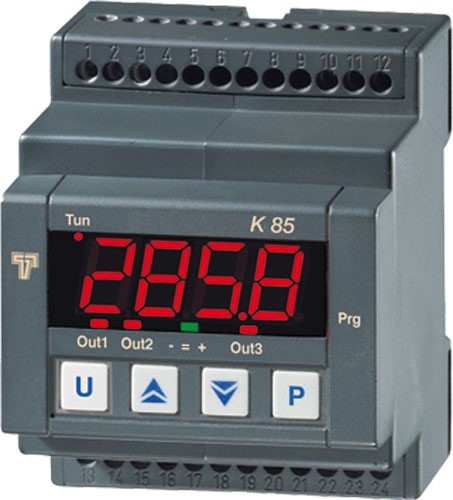

PID controller Tecnologic K85 HCOR for DIN rail
PID controller for DIN rail with input for temperature sensors type J,K,R,S,T,Pt100, 0/12...60mV, one output for SSR and one output relay
On request
- Replacement for TLK35
- Designed for cooling and heating
- ON/OFF control
- ON/OFF with neutral zone
- Single-acting PID control
- Double-acting PID control with overtemperature control
- DIN rail mounting
- Soft start and other advanced features
- One output relay and one output for SSR
| Power supply | 230 Vac |
| Design (panel size) | DIN |
| Type of regulation | 2xPID |
| Control input | Temperature sensor |
| Output - relay | 2x |
| Display digit colour | Red |
| Producer | Ascon Tecnologic |
The Ascon Tecnologic K85 is a K-series PID controller that is characterized by its versatility and many parameter settings. Typical applications for these controllers include shoe machines, adhesive application machines, binding, packaging and blistering machines, printing machines, industrial bakeries, glass bending machines, large kitchens, ceramic kilns, chillers and many others. In addition to the standard functions, K-series controllers allow:
- User input calibration
- Dual-acting PID heating/cooling control with overtemperature control and three types of automatic PID parameter tuning
- Programmer versions allow setpoint curve with up to 8 steps, two events and endurance control
- Version with independent timer allows timing functions in 4 different modes
- On/Off heating/cooling control with compressor time protection
- Wattmeter function to calculate instantaneous and total consumption
- Digital retransmission of the setpoint
- Operating hours counter with adjustable service interval reporting
- Delayed start and soft start function
- Ramp for continuous setpoint change
- Optional RS485 ModBus RTU communication
- Free parameter sequence setting
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 100...240 Vacdc |
| Consumption | 6VA max |
| Input | Thermocouples J, K, R, S, T Pt100 voltage signal 0/12...60 mV |
| Outputs | 1x output for SSR (max 12V 20mA) 1x switching relay 8A 250Vac |
| Overall accuracy | ±0.5% of range ±1 digit |
| Operating conditions | 0...50°C, 0...95%RH non-condensing |
| Coverage | IP40 |
| Dimensions | 4 DIN modules 70 x 84 x 60 mm |
