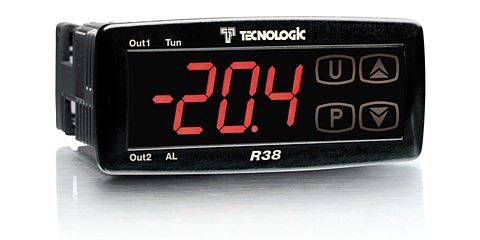

PID controller Tecnologic R38S FAOR with 12V power supply and touch control

size 32x74 mm, input Pt100, power supply 12 Vacdc, output for SSR + 1x relay
PID controller Tecnologic R38S FAOR with 12V power supply and touch control
108 EUR 89,49 EUR excl. VAT
On request
In person in Prague:on requestWith a delivery company:on request
Code4T-050-500PNRozměr 32x74 mm, vstup Pt100, napájení 12 Vstř/ss, výstup 1x pro SSR + 1x reléProducerAscon TecnologicWarranty2 years

Solid State Relay Maxwell MS-1DA4825 25A Single Phase

Solid State Relay Maxwell MS-1DA4825 25A Single Phase
In stock
11,96 EUR excl. VAT14,47 EUR

Pt100 temperature probe Pixsys BS 4x40 3m

Pt100 temperature probe Pixsys BS 4x40 3m
In stock
21,44 EUR excl. VAT25,95 EUR
  • Power supply 230Vac
  • Pt100 input
  • Output relay + output to SSR
  • Touch panel

Comparison of the Ascon Tecnologic TLK range of industrial controllers:

R38 TLK31 TLK38 TLK39 TLK41 TLK42 TLK43 TLK48 TLK49
Dimensions (mm) 78 x 35 78 x 35 78 x 35 78 x 35 48 x 48 48 x 48 48 x 48 48 x 48 48 x 48
Power supply 12, 24, 100-240 Vacdc 12 Vacdc 12, 24, 100-240 Vacdc 12, 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc
Display 1 line 1-line 1-line 2-line 1-line 2-row 2-row 1-line 2-row
Analog input PTC, NTC, TcJ, TcK, Pt100, Pt1000 PTC, NTC, TcJ, TcK, TcS, Pt100, mV, V, mA PTC, NTC, TcJ, TcK, TcS, Pt100, mV, V, mA PTC, NTC, TcJ, TcK, TcS, Pt100, mV, V, mA Universal Universal Universal PTC, NTC, TcJ, TcK, TcS, Pt100, mV, V, mA PTC, NTC, TcJ, TcK, TcS, Pt100, mV, V, mA
Digital input 2x 2x 2x 1x
Relay/output for SSR 2x 4x 2x 2x 4x 4x 4x 3x 3x
Analog output 2x optional
Retransmit setpoint
On/Off and PID control yes yes yes yes yes yes yes yes yes
Regulation of actuators optional
RS485 optional optional optional optional
Timer function
Programmer function

Power supply12 Vac/dc
Design (panel size)32 x 74 mm
Type of regulationPID
Control inputTemperature sensor
Output - relay1x
Output for SSR1x
Display digit colourRed
ProducerAscon Tecnologic

Simple PID controller with easy programming. For applications requiring no specific features and controller customization.
Suitable for the following types of applications.

  • Only 24 parameters (configuration and running time)
  • Input for RTD temperature probes Pt100
  • 0.1 °C resolution with automatic range change
  • "Touch" keypad
  • Up to 2 SPDT output relays
  • Power supply 100-240 V AC
  • Control types:
    PID single-acting with Autotuning
    ON/OFF single-acting
    ON/OFF double-acting (H/C) (neutral zone)
    ON/OFF SP1 controls Out 1 - SP2 controls Out 2
  • Parameters protected by access password or "Keypad Lock"
  • Soft start or delay start function
  • Auto or Stand-by mode
  • Compressor protection time
  • Direct access to setpoint

TECHNICAL PARAMETERS
Power supply 12 Vdc ±10%
Consumption max. 6 VA
Inputs pt100 resistive (-50...850°C)
(2-wire connection)
Outputs 1x switching relay 8(3) A / 250 Vac and 1x output for SSR
Accuracy @25°C ±0.5% ±1 digit
Sampling time 1 s
Dimensions 78 x 35 mm, depth 64 mm
Working conditions 0 to 50 °C, < 95 RH% non-condensing
