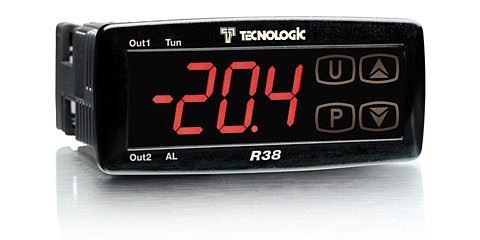

PID controller Tecnologic R38S LTR with touch control and one relay

size 32x74 mm, input PTC / NTC / Pt1000, power supply 24 Vacdc, 1x output relay
PID controller Tecnologic R38S LTR with touch control and one relay
122 EUR 101 EUR excl. VAT
On request
In person in Prague:on requestWith a delivery company:on request
Code4T-050-510PNRozměr 32x74 mm, vstup PTC / NTC / Pt1000, napájení 24 Vstř/ss, výstup 1x reléProducerAscon TecnologicWarranty2 years

Pt1000 temperature sensor Pixsys BS 4x40mm

Pt1000 temperature sensor Pixsys BS 4x40mm
In stock
16,91 EUR excl. VAT20,46 EUR

Dixell NS6 NTC temperature probe

Dixell NS6 NTC temperature probe
In stock
6,43 EUR excl. VAT7,78 EUR

Dixell NG6 NTC temperature sensor

Dixell NG6 NTC temperature sensor
In stock
4,74 EUR excl. VAT5,74 EUR

PTC temperature probe Dixell S6.S - 2 m

PTC temperature probe Dixell S6.S - 2 m
In stock
9,49 EUR excl. VAT11,48 EUR
  • Power supply 24 Vacdc
  • Input for PTC, NTC, Pt1000
  • One output relay
  • Touch panel

Comparison of Ascon Tecnologic TLK industrial controller series:

R38 TLK31 TLK38 TLK39 TLK41 TLK42 TLK43 TLK48 TLK49
Dimensions (mm) 78 x 35 78 x 35 78 x 35 78 x 35 48 x 48 48 x 48 48 x 48 48 x 48 48 x 48
Power supply 12, 24, 100-240 Vacdc 12 Vacdc 12, 24, 100-240 Vacdc 12, 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc 24, 100-240 Vacdc
Display 1 line 1-line 1-line 2-line 1-line 2-row 2-row 1-line 2-row
Analog input PTC, NTC, TcJ, TcK, Pt100, Pt1000 PTC, NTC, TcJ, TcK, TcS, Pt100, mV, V, mA PTC, NTC, TcJ, TcK, TcS, Pt100, mV, V, mA PTC, NTC, TcJ, TcK, TcS, Pt100, mV, V, mA Universal Universal Universal PTC, NTC, TcJ, TcK, TcS, Pt100, mV, V, mA PTC, NTC, TcJ, TcK, TcS, Pt100, mV, V, mA
Digital input 2x 2x 2x 1x
Relay/output for SSR 2x 4x 2x 2x 4x 4x 4x 3x 3x
Analog output 2x optional
Retransmit setpoint
On/Off and PID control yes yes yes yes yes yes yes yes yes
Regulation of actuators optional
RS485 optional optional optional optional
Timer function
Programmer function

Power supply24 Vac/dc
Design (panel size)32 x 74 mm
Type of regulationPID
Control inputTemperature sensor
Output - relay1x
Display digit colourRed
ProducerAscon Tecnologic

Simple PID controller with easy programming. For applications requiring no specific functions and controller customization.
Suitable for the following types of applications.

  • Only 24 parameters (configuration and running time)
  • Input for Pt1000, PTC, NTC
  • 0.1 °C resolution with automatic range change
  • "Touch" keypad
  • Up to 2 SPDT output relays
  • Power supply 100-240 V AC
  • Control types:
    PID single-acting with Autotuning
    ON/OFF single-acting
    ON/OFF double-acting (H/C) (neutral zone)
    ON/OFF SP1 controls Out 1 - SP2 controls Out 2
  • Parameters protected by access password or "Keypad Lock"
  • Soft start or delay start function
  • Auto or Stand-by mode
  • Compressor protection time
  • Direct access to setpoint

TECHNICAL PARAMETERS
Power supply 24 Vdc ±10%
Consumption max. 6 VA
Inputs Pt1000, PTC/NTC thermistor (-50...150°C)
Outputs 1x switching relay 8(3) A / 250 Vac
Accuracy @25 °C ±0.5% ±1 digit
Sampling time 1 s
Dimensions 78 x 35 mm, depth 64 mm
Working conditions 0 to 50 °C, < 95 RH% non-condensing
