Pixsys ATR144-ABC PID controller with dual display and NFC
- Universal analogue input
- 2x output relay
- 1x digital input or 1x output for SSR
- On-Off / PID / 2xPID control
- Possibility to set 3 setpoints also via digital input
- Logic for valve control
- Automatic setting of PID parameters
- 2 timer functions (dependent and independent)
| Power supply | 24-230 Vac/dc |
| Design (panel size) | 32 x 74 mm |
| Type of regulation | 2xPID |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | 2x |
| Output for SSR | 1x |
| Display digit colour | Two colours |
| Producer | Pixsys |
The Pixsys ATR144, a 32 x 74 mm controller, is a highly configurable, versatile device that allows considerable customization to customer requirements, both on the input and output side.
The input can be programmed for temperature sensors, RTDs and thermocouples, as well as pressure, humidity and flow sensors. The control algorithm allows PID settings for cooling/heating (dual PID control). PID control is optimized for both temperature control and process variables with fast transients, such as pressure control or flow control. Pixsys ATR144 software features include logic for opening and closing valves for industrial thermoregulation, climate control, batching systems, etc. The controller outputs can be set for control / multiple alarm modes / event signalling. Serial communication is optional RS485 with Modbus/Slave protocol.
Settings can be made using a mobile phone with Android OS and NFC technology and MyPixsys App in addition to the buttons on the panel .

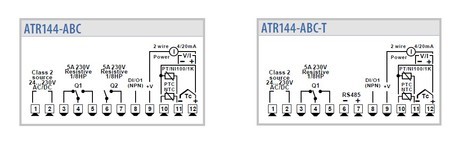

| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24...230 Vac/Vdc ±15%, galvanically isolated 2.5kV |
| Consumption | approx. 5 VA |
| Display | Two-line, two-colour, 4 + 5 digits |
| Operating conditions | 0...45°C, humidity 35...95%RH |
| Dimensions | 32 x 74 mm, depth 53 mm |
| Analog input | Adjustable for TC J, K, S, R, T, N, B, Pt100, Pt500, Pt1000, Ni100, PTC1k, NTC10k, 0...10V, 0/4...20mA, 6k?, 150k? potentiometer Resolution 16bit, sampling 2.1ms (max. 470Hz) |
| Digital input | PNP, setpoint selection, Hold, Run, Tuning, Start/Stop, configuration lock, etc. |
| Outputs | 2x 5A relays 1x output for SSR 12...35 Vdc |
| Coverage | IP54 (IP65 with sealing) |
