Pixsys ATR171 12ABC PID controller for multiple setpoints
- PID controller with the possibility of setting multiple setpoints via analog input
- One analog input + one digital input
- Output for 2 relays + output for one SSR
- Wide power supply range 24...230V
- Basic timer functions
- Programmable cycle with three steps
| Power supply | 24-230 Vac/dc |
| Design (panel size) | 72 x 72 mm |
| Type of regulation | 2xPID |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | 2x |
| Output for SSR | 1x |
| Display digit colour | Two colours |
| Producer | Pixsys |
With the Pixsys ATR171, the manufacturer integrates all possible combinations of input sensors and output actuators into one device. One or two analog inputs, the ability to connect up to 17 different types of sensors, and outputs configurable as relays or SSRs are features that make the Pixsys ATR171 an extremely versatile and customizable device for any application. Outputs are programmable as alarm/command/event or analog transmission. Power supply with an extremely wide range of 24...230 V ac/dc with galvanic isolation (also between inputs and outputs), automatic tuning of PID parameters, possibility to program a cycle with three steps, timer function, possibility to set the desired value with a potentiometer, this is just a small list of the Pixsys ATR171 capabilities.
| TECHNICAL PARAMETERS | |
|---|---|
| Adjustable control types | On-Off with hysteresis, P, PI, PID, PD, double PID, automatic/manual control |
| Power | 24...230Vac/dc ±15% 50/60 Hz |
| Consumption | 5.5 VA |
| Input | TC, K, J, S, R, PT100,PT500, PT1000, Ni100, PTC1K, NTC10K, 0/4..20 mA, 0..10 V, 0...40mV, 6/150 k? potentiometer |
| Digital input | 1 to 4 setpoints, Hold, Start |
| Outputs | 2 x 8A relay 1 x SSR 12Vdc |
| Coverage | Front panel IP54 (with gasket) box IP30 terminal block IP20 |

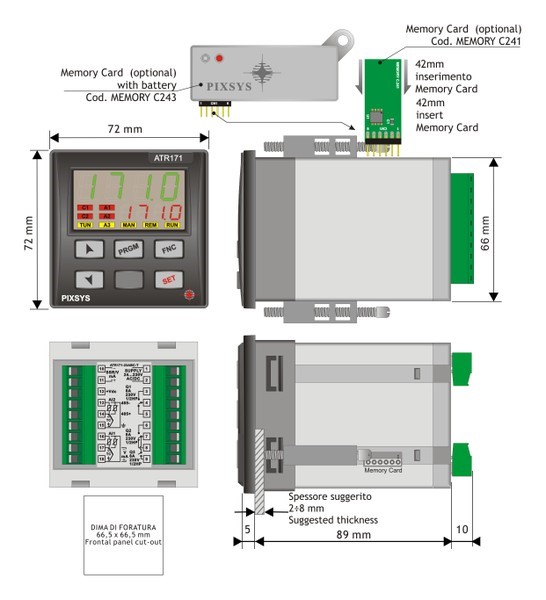

| Dimensions | 72 x 72 (front panel) x 99 mm |
| Operating conditions | 0...45 °C, 35...95 RH% |
