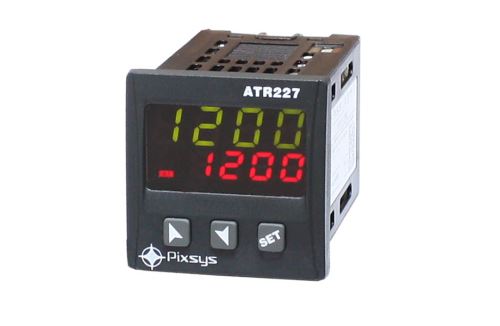

Pixsys ATR227-12ABC PID controller with advanced output power control and synchronization
- On-Off/P/PI/PID/PD time proportional control
- Advanced inductive load power control functions
- Soft-start function
- Automatic parameter tuning
| Power supply | 24-230 Vac/dc |
| Design (panel size) | 48 x 48 mm |
| Type of regulation | PID |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | 2x |
| Output for SSR | 1x |
| Display digit colour | Two colours |
| Producer | Pixsys |
The Pixsys ATR227 controller is a microprocessor controlled PID controller with one universal analog input, configurable outputs and a power supply in the range of 24...230 Vacdc. Up to 18 different types of sensors can be connected to it. A special feature of this model is the advanced power control of the inductive load at the output via the SSR output. It is possible to set the control by phase control or Burst firing (zero switching with fixed time base). A digital input allows various controller functions to be activated, including selection of auto/manual mode. Configuration is possible using either pushbuttons or a Memory card key with internal battery, where it is not necessary to connect the controller to a power supply as is usual with competing controllers.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24...230 Vac/Vdc +/-15% 50/60Hz |
| Power input | max. 5.5VA |
| Analog input | configurable; Thermocouples K, S, R, J; PT100, PT500, PT1000, Ni100, PTC1K, NTC10K; 0-10V, 0-20 or 4-20mA, 0-40mV, 50mA measuring transformer; Potentiometers 6k?, 150k? 16-bit resolution, 100ms sampling (10Hz) |
| Digital input | setpoint selection, Start, Stop, Auto/Man. control, change cooling/warming, reset, etc. |
| Accuracy | +/-0.2% ± 1 digit |
| Output | 2x relay, 2A 250V |
| Output for SSR | PNP 12Vdc 30mA synchronized with supply voltage |
