Pixsys ATR244-23ABC-T PID controller with easy programming via NFC
- Possibility to set 1-4 setpoints
- On-Off, P, PI, PD time proportional, PID control, 2x PID (cooling/heating)
- Universal analog input, 16 bit DAC, up to 50,000 levels
- Programmable input sampling rate up to 2.1ms (470Hz)
- 2x auxiliary digital input with programmable function
- Option to connect a current measuring transformer for control loop fault detection
- 2x output relay + 2x output for SSR + Analog output
- Logic for control of servo drives (servo valves), Soft-Start expressed as steps/time
- RS485 ModBus RTU
- Wide power supply range 24..230 Vac/Vdc
| Power supply | 24-230 Vac/dc |
| Design (panel size) | 48 x 48 mm |
| Type of regulation | 2xPID |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | 3x |
| Output for SSR | 2x |
| Analog output | Yes |
| Communication Bus | RS485 |
| Display digit colour | Two colours |
| Producer | Pixsys |
The Pixsys ATR244 is a new programmable controller with one universal analog input, and configurable outputs for both SSR and relay.
The analog input is universal, with high resolution (16 bit A/D converter) and accuracy, and can be connected to temperature sensors and type signals:
- k, S, R, J, T, N, B thermocouple with automatic cold end compensation
- Pt100
- Pt500
- Pt1000
- Ni100
- PTC
- NTC
- 0...10V (50,000 points)
- 0/4...20mA (40.000 points)
- 0...60mV (25,000 points)
- potentiometer 1...150k? (50.000 points)
The output of the Pixsys ATR244 controller can use integrated relays, SSR outputs, or an analog output adjustable to 4...20mA, 0...10V, or for rebroadcasting the setpoint/current value.
Specific functions include Soft-Start function expressed by degree/time ratio or % power, logic for servo drive control (dual PID control for cooling and heating), possibility to set up to 4 setpoints, pre-programmed Start/Stop cycle with two/three steps.
Other software features include:
- On-Off control with hysteresis, P, PI, PID, PD time proportional
- Automatic and manual tuning of control parameters
- Data protection - control lockout / alarm setting / password protected parameter input
- Alarm types - Absolute / Threshold, Band, High / Low deviation. Alarm with manual reset option. Control loop function alarm (Loop break alarm)
- Automatic / manual function - output as a percentage of output with automatic detection of input sensor error
- Open/close logic for motorized valve control
- Quick setup options - programming via memory card, LABSOFTVIEW software, programming via EASY-UP codes
- Programming via Android smartphone app with NFC
Of course, there are also several types of automatic PID parameter settings and adaptation to the controlled process. Configuration is possible using a mobile phone (smartphone) with Android operating system with NFC (RFID) support - MyPixsys app for Android devices. Further information on programming can be found on the Pixsys YouTube channel
The Pixsys ATR244 controller is also equipped with an RS485 Modbus RTU Slave serial communication link and, using the measuring transformer input, a load fault monitoring function.

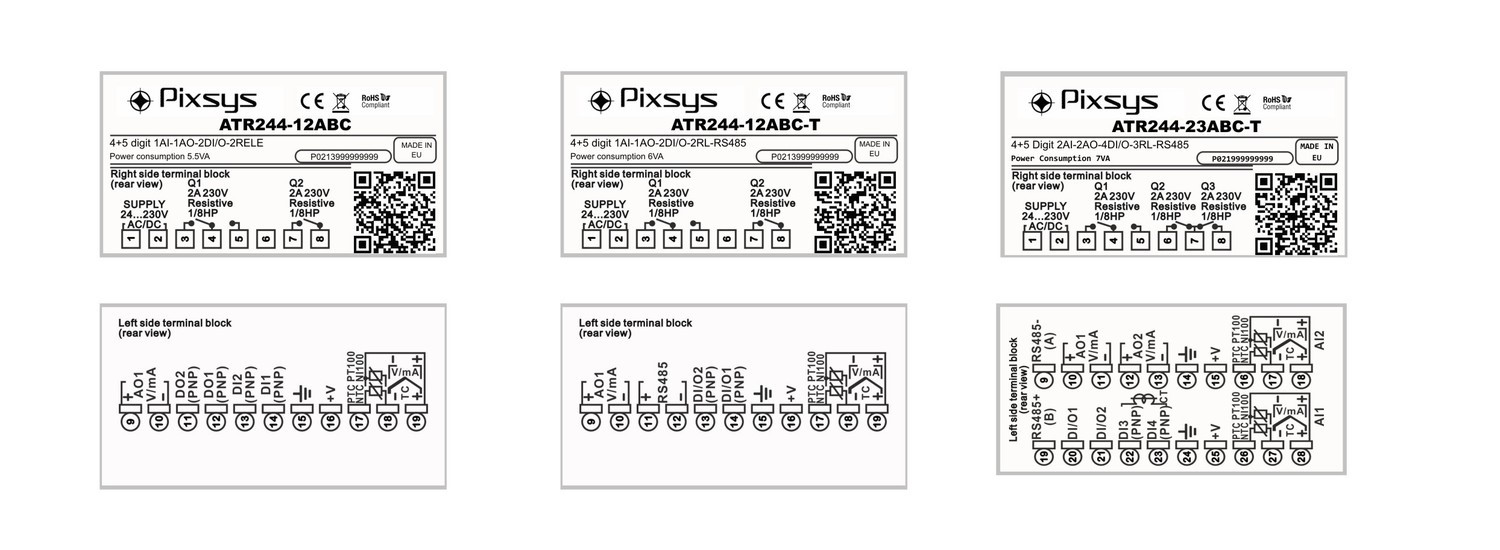

| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24...230 Vac/Vdc +/-15% 50/60Hz galvanically isolated - 2.5kV |
| Power input | max. 8W |
| Display | white, 4 positions, height 12mm red, 4 positions, height 7.5mm coloured status icons |
| Input | 16bit A/D, configurable; K, S, R, J, T, N, B thermocouples with automatic cold end compensation; PT100, PT500, PT1000, Ni100, PTC1K, NTC10K; 0-1V, 0-10V, 0-20 or 4-20mA, 0-60mV; Potentiometers: 1K-150K? |
| Input sampling frequency | Programmable up to 470Hz (min. 2.1ms) |
| Auxiliary inputs | 2x digital input configurable to change setpoint, Hold, Run, Start/Stop, Autotuning start, Configuration Lock 1x CT input for control loop fault detection |
| Input for measuring transformer | 50mA, 800µs - 4096 points |
| Outputs | 2x 5A 250V relay 2x output for SSR 12/24 Vdc max. 30mA 1x analog output (40.000 points)4...20mA / 0...10V / retransmission |
| Communication | RS485 ModBus RTU Slave |
| Front panel enclosure | IP65 |

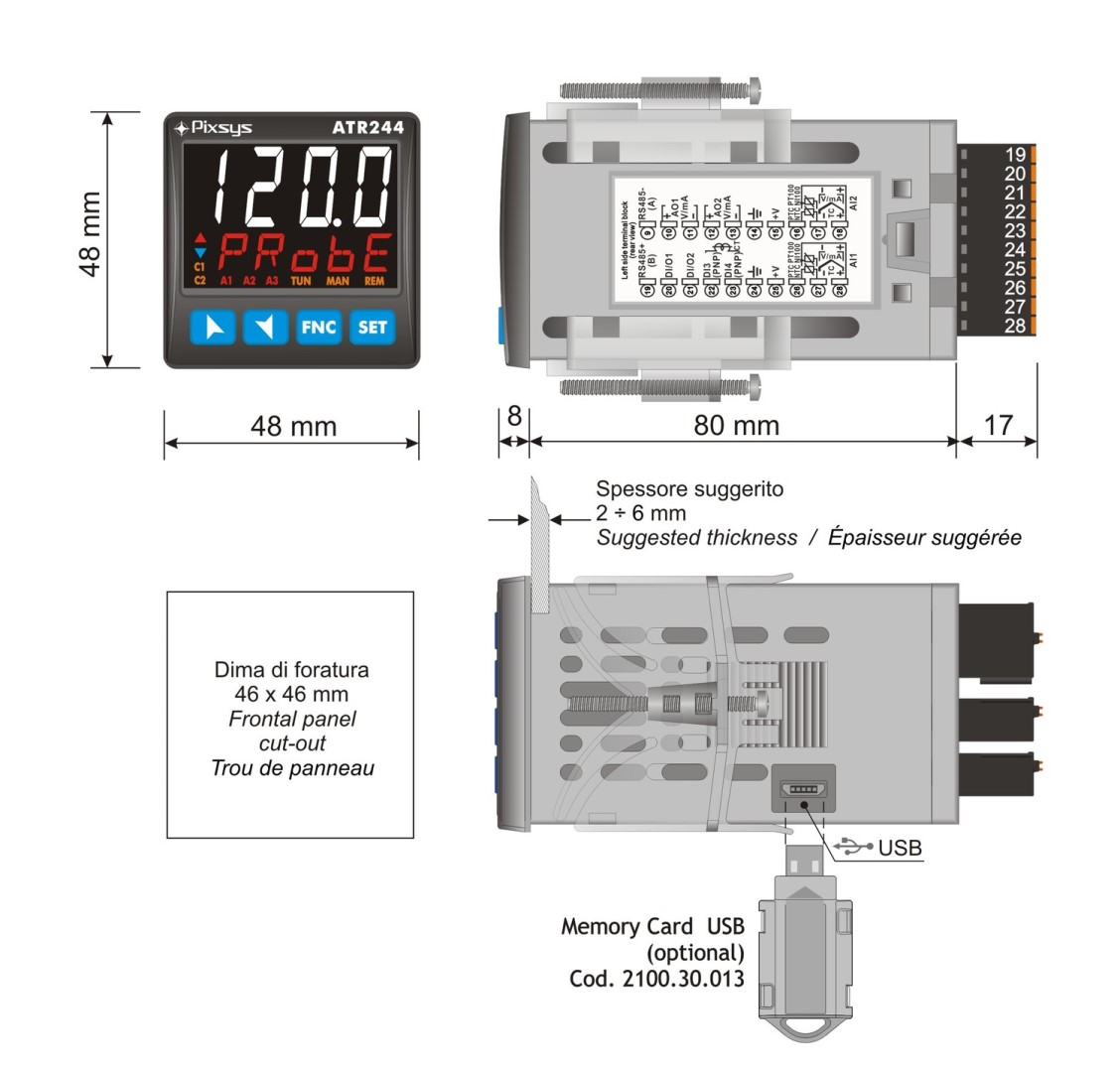

| Dimensions | 48 x 48 x 105 mm |
| Operating conditions | 0...+45°C 35...95% r.v. non-condensing |
