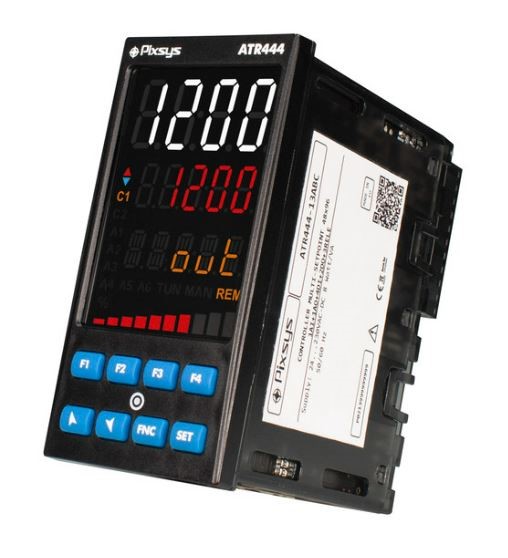

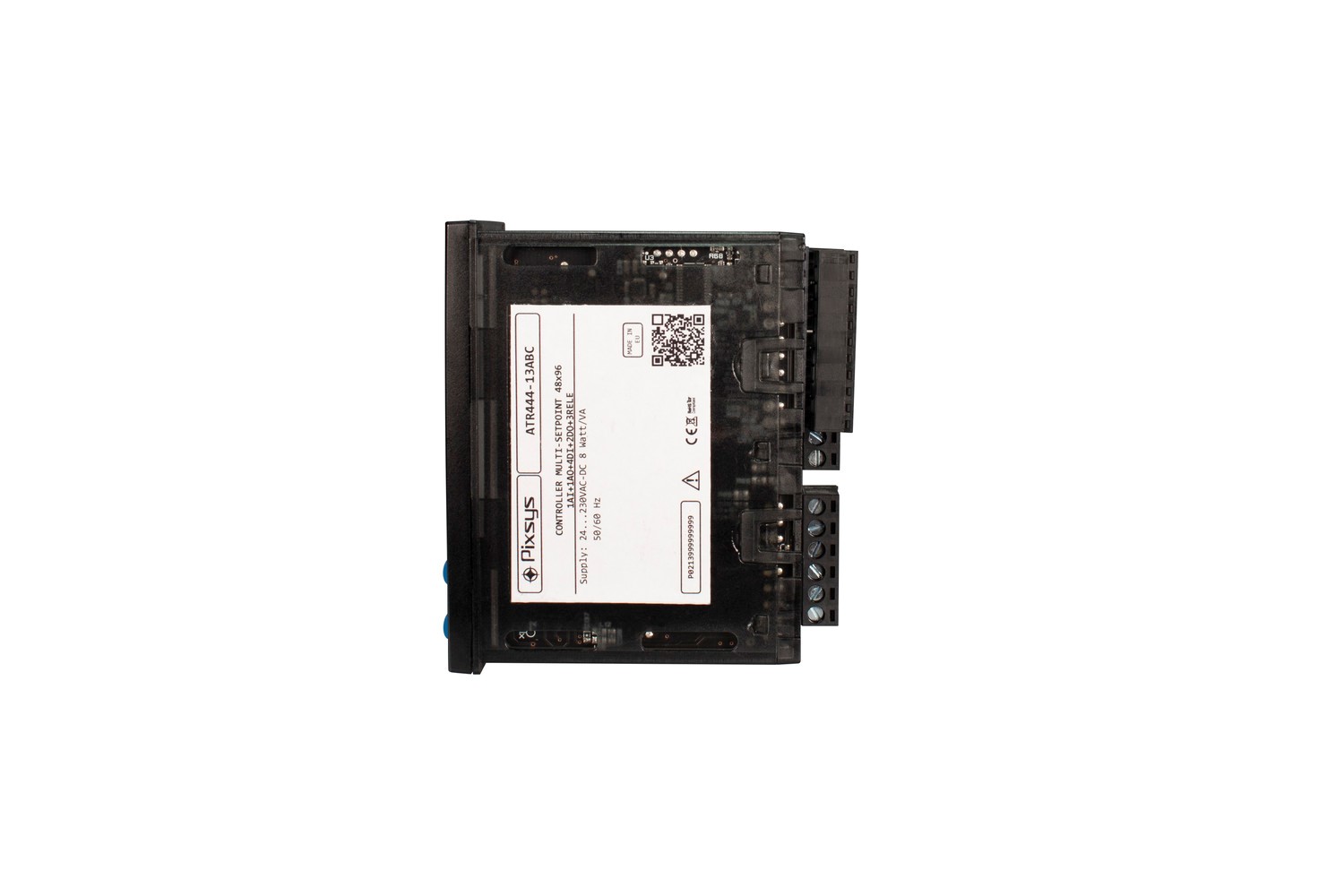

Pixsys ATR444-14ABC-T PID controller with control flow programmer and RS485
- Possibility to control servo drives
- Integrated programmer for up to 12 steps
- On-Off, P, PI, PD time proportional, PID control, 2x PID (cooling/heating)
- Universal analog input, 16 bit DAC, up to 50,000 levels
- 2x auxiliary digital input with programmable function
- 4x output relay + 2x output for SSR + Analog output
- Logic functions between inputs, allowing more complex logic control conditions
- Wide power supply range 24..230 Vac/Vdc
- RS485 ModBus communication
| Power supply | 24-230 Vac/dc |
| Design (panel size) | 48 x 96 mm |
| Type of regulation | 2xPID |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | 4x |
| Output for SSR | 2x |
| Analog output | Yes |
| Communication Bus | RS485 |
| Display digit colour | Two colours |
| Producer | Pixsys |
Pixsys ATR444 PID controller integrates all the features of Pixsys Blu Line controllers.
The bright alphanumeric display allows optimal visibility in all industrial environments, not only for process and alarm variables, but also for scrolling text status/event messages and online help messages.
The keypad now includes 8 buttons with the ability to program individual buttons for dedicated functions, allowing direct access from the front panel to frequent operations or functions that could be complex or time consuming for the user to operate.
Smartphone programming mode with the MyPixsys App relies on NFC technology and requires no cabling, power or special hardware, which also makes it a useful remote assistance tool for the ability to share configuration files via common messaging applications.
Two universal analog inputs allowing mathematical operations (differential, average, sum) , an extensive combination of analog and digital outputs, valve open/close logic, several alarm and diagnostic functions, timer mode: the most complete Pixsys ATR444 models support advanced applications that may traditionally require programmable logic.
In heating/cooling mode, up to two PID control loops can be handled with a flexible algorithm that is optimized even for fast processes or processes requiring high accuracy.
Some versions also integrate a programmer mode for cycle/profile control with 12 segments.
Connectivity includes RS485 and ModbusRTU protocols, while the controller can also be used with the Pixsys CNV580 IIoT gateway to remotely monitor selected variables and trigger alerts via PixsysGuard.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24...230 Vac/Vdc ±15%, 50/60 Hz 2500V galvanic isolation |
| Power consumption | max 10 VA |
| Analog input | optional for thermocouples K, J, S, R, T, N, B probes NI100, PT100 (2 ranges), PT500, PT1000, NTC10K,PTC1K, signals 0..10V, 0/4..20mA, 0..40mV potentiometers up to 6K?, up to 150K? 16-bit A/D converter |
| Additional inputs | 2x Digital input, alternatively 1x 50mA load transformer input |
| Outputs | 4x 5A resistive relay 2x logic output for SSR 12/24Vdc 30mA 1x analog output 4..20mA / 0..10V / retransmission (40000 points in range) RS485 ModBus |
| Accuracy | ±0.2% ±1digit for Tch and resistive sensors ±0.5% ±1digit for V/mA ±0.1°C for comparative connections |
| Sampling time | selectable (min. 2.1ms) |
| Dimensions | 48x96x69mm |
| Operating conditions | 0...45°C, 35...95% humidity |
