Pixsys DRR244 13ABC-T PID controller with isolated analog output and RS485
Universal DIN rail mounted controller with galvanically isolated analogue output, 24-230Vac/dc power supply, universal input, 3x relay output + 2x for SSR + RS485 Modbus communication, NFC programming
In stock
- One programmable universal analog input with 16-bit A/D converter
- Load transformer measurement input
- Up to 2 digital auxiliary inputs
- 3 output relays
- Up to 2 logic outputs for SSR
- Galvanically isolated scalable analog output for retransmission of measured or setpoint
- ON/OFF, neutral zone, P, PI, PID, PD time proportional, 2x PID, manual control + Autotuning control
- Basic programmer with three steps for time-dependent control
- 2 timer functions (dependent and independent)
- RS485 ModBus
- The controller is also designed to control servo drives
- Programmable via Android mobile phone and NFC using the MyPixsys app
| Power supply | 24-230 Vac/dc |
| Design (panel size) | DIN |
| Type of regulation | 2xPID |
| Control input | Universal |
| Auxiliary digital input | Yes |
| Output - relay | 3x |
| Output for SSR | 2x |
| Analog output | Yes |
| Communication Bus | RS485 |
| Display digit colour | Two colours |
| Producer | Pixsys |

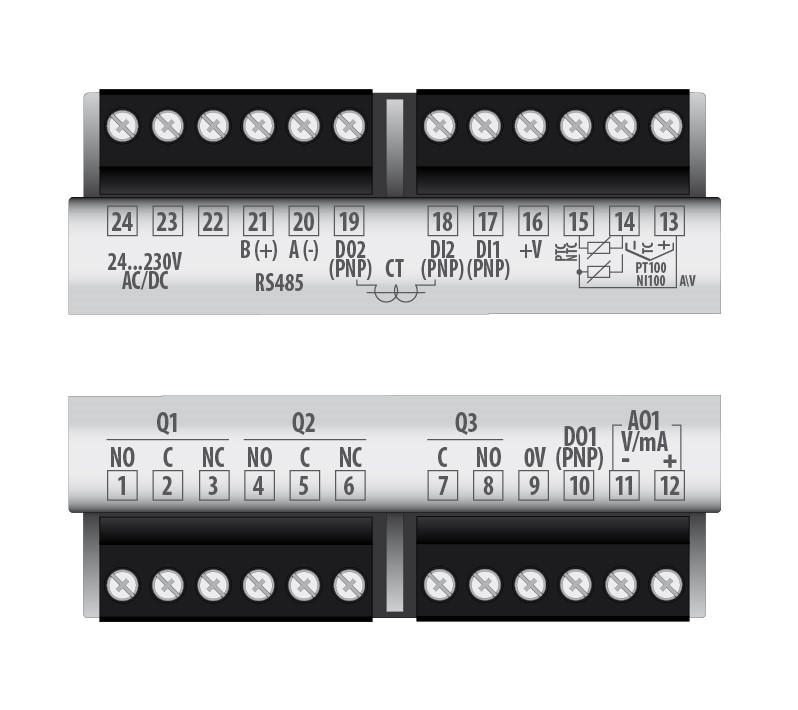

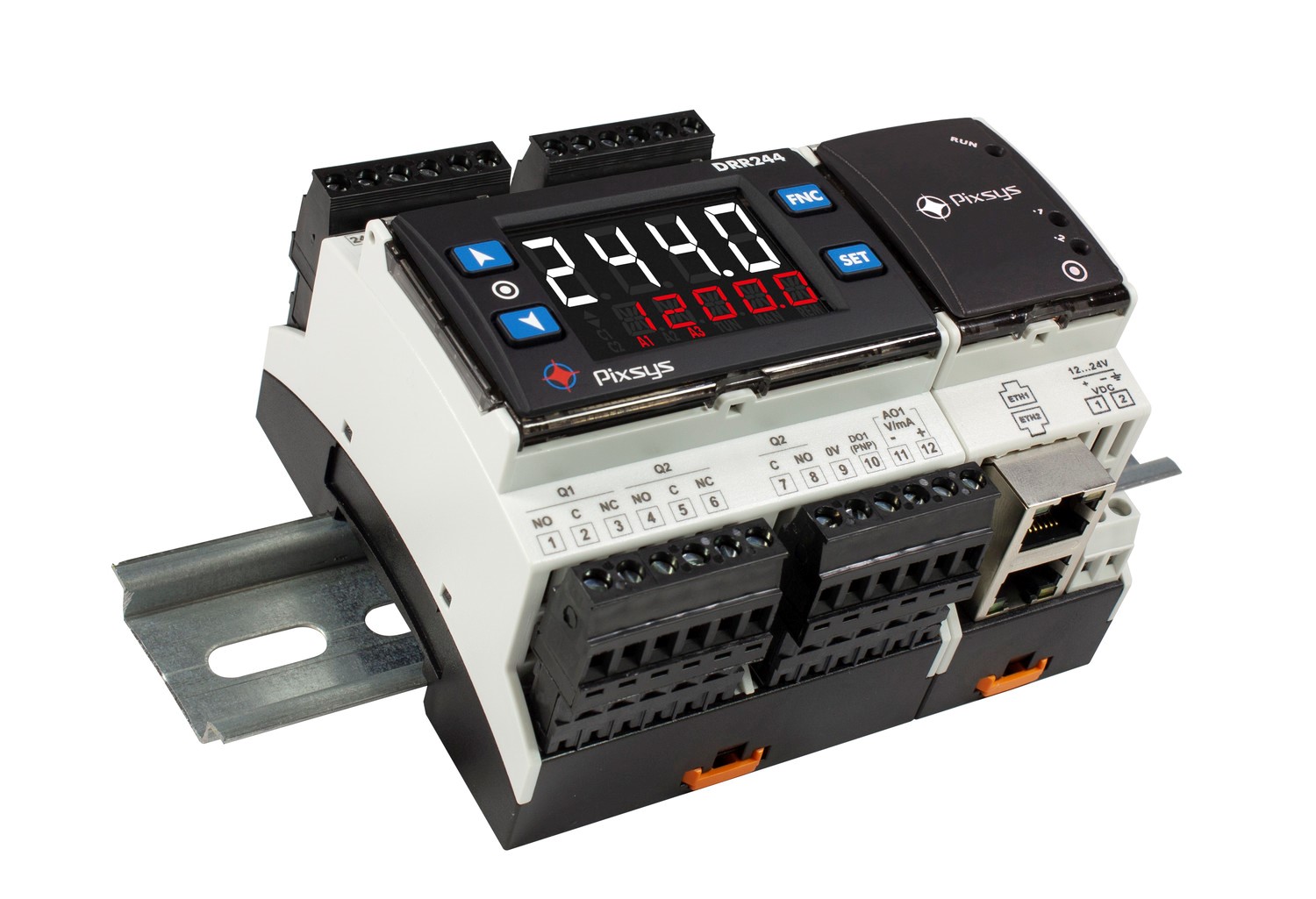

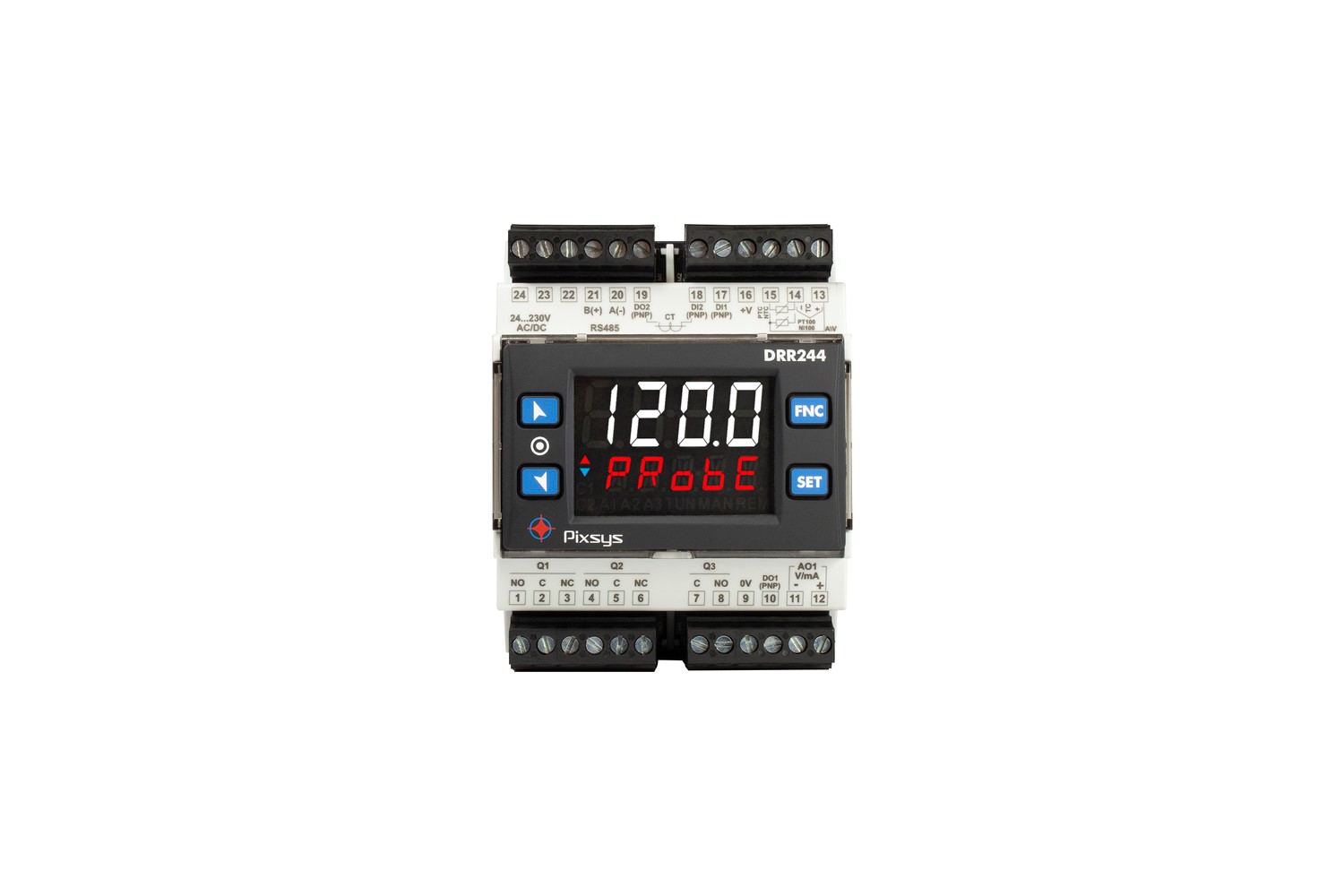

Pixsys DRR244 is a multifunction controller for DIN rail. Its main advantages include:
- programmable cycle in 3 steps
- simple operation with four front panel buttons
- quick access to main functions
- large dual display (white/red) 4 and 5 digit + status LED indicators for inputs, outputs and alarms
- easy programming via Memory Card (the version of the card with built-in battery allows configuration of parameters without the need to have the instrument plugged into the mains)
- rS485-ModbusRTU serial port and output current loop monitoring function using TA 50mA input
- parameter-configurable analog input that supports up to 18 different types of probes/signals
- Configurable galvanically isolated analog output for either control or transmitting measured temperature in the 4..20mA / 0..10V range
- possibility to set and check parameters using LabSoftWiew for Windows
- extended power supply range 24...230Vac/Vdc without the need to set jumpers
- selectable sampling time (frequency) 4.12...470 Hz
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24...230 Vac/Vdc ±15%, 50/60 Hz 2500V galvanic isolation |
| Power input | max 9 VA |
| Analog input | optional for thermocouples K, J, S, R, probes NI100, PT100 (2 ranges), PT500, PT1000, NTC10K,PTC1K, signals 0..10V, 0/4..20mA, 0..40mV potentiometers up to 6K?, up to 150K? 16-bit A/D converter |
| Additional inputs | 2x Digital input, alternatively 1x 50mA load transformer input |
| Outputs | 2x 5A resistive relay 1x 2A resistive relay 2x logic output for SSR 1x analog output 4..20mA / 0..10V / retransmission (40000 points in range) 1x auxiliary output 12Vdc 30mA for ext. probes RS485 ModBus |
| Accuracy | ±0.2% ±1digit for Tch and resistive sensors ±0.5% ±1digit for V/mA ±0.1°C for comparative connections |
| Sampling time | selectable (min. 2.1ms) |

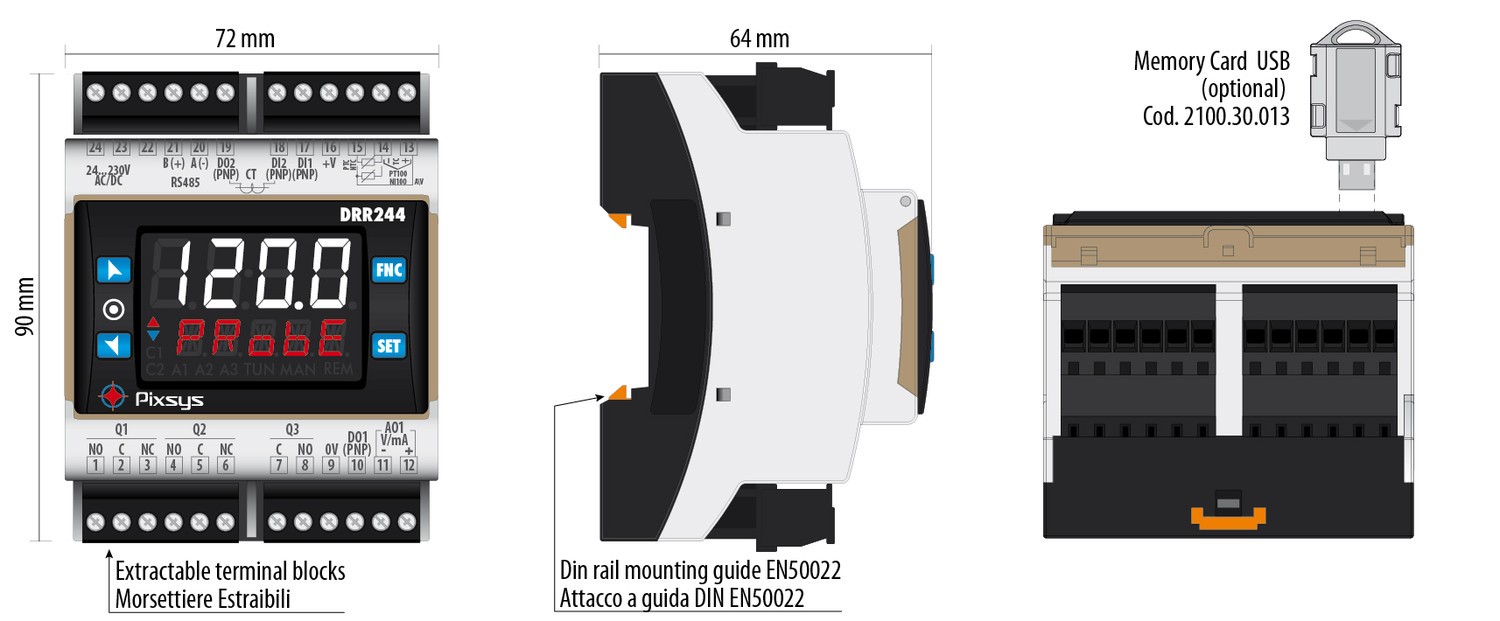

| Dimensions | DIN rail (72x90x64mm) |
| Operating conditions | 0...45°C, 35...95% humidity |
