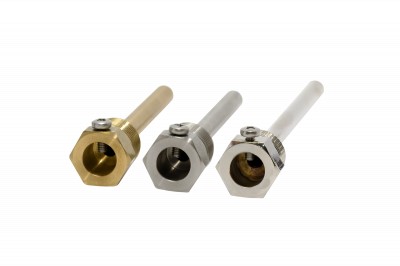

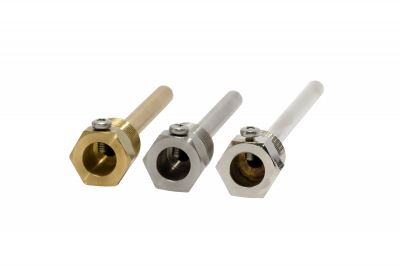

Produal ATH 80 acid sump
Sump for temperature sensors Produal. For temperature measurement in liquids. Acid-resistant design.
Over a week
- For use with Produal TEAT, TEAT LL and other temperature sensors
- For measuring the temperature of acidic liquids
- For sensor stem size O 6 x 85 mm
- Outer diameter of the sensor stem O 8mm
- External thread R1/2" (G1/2")
- Material acid resistant steel AISI 316L
| Producer | Produal |
Produal ATH 80 is a sump for Produal TEAT, TEAT LL and other temperature sensors. The mounting length (stem length) of this variant is 50mm, but mounting lengths of 50, 100, 150, 200, 250, 300, 350 and 450mm can be supplied on request.
The selling price quoted is the retail price, for single sales. If you require multiple pieces, please feel free to contact us for a significantly better price.
| TECHNICAL PARAMETERS | |
|---|---|
| Internal stem dimension | O 6 x 85 mm |
| Outer stem dimension | O 8 x 80 mm |
| Material | AISI 316L acid-resistant steel |
| Thread | R1/2" (can be installed in internal G1/2") |
| Mounting 6Hr | 22mm |
