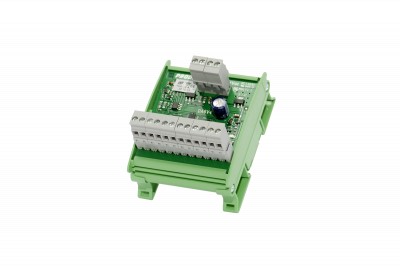

Produal DA 6 Digital to Analog Input Converter
- Up to 6 digital inputs
- One analog output (current or voltage) for signal transmission
- DIN mounting
| Measured quantity | Voltage / current signal |
| Designation | Built-in |
| Producer | Produal |
The Produal DA 6 is a DI/AO converter that allows you to encode up to 6 digital inputs (potential-free contacts) to be monitored into a single analog output. This analogue signal can be transferred via three wires to the parent system where it can be easily decoded back into 6 digital signals.
Each digital input generates a different level of analog signal. The lowest level (DI1) is about 160 mV / 0.254 mA and the highest (DI6) is about 5.08V / 12.13 mA.
The converter displays the status of each digital input via an LED.
The listed selling price is retail, for single unit sales. If you require multiple units, please feel free to contact us for a significantly better price.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24 Vac |
| Consumption | less than 1 VA |
| Inputs | 6x potential-free contact max. line resistance <10k? |
| Outputs | 1x 0...10V 1x 4...20mA |
| Operating conditions | 0...+50°C, non-condensing humidity |
| Dimensions | 67.5 x 77 x 42 mm |
