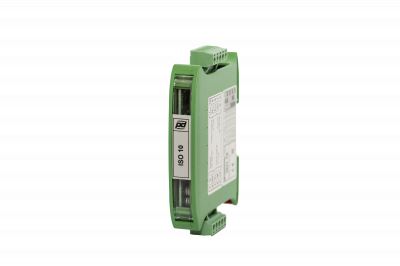

Produal ISO 10 galvanic isolator and converter
- Galvanic separator
- Signal conversion option
- DIN mounting
| Measured quantity | Voltage / current signal |
| Designation | Built-in |
| Producer | Produal |
The Produal ISO 10 provides galvanic isolation between the input and output signals and the supply voltage. The ISO 10 can also be used as a signal converter and amplifier with a wide range of signal conversion options. If the system is improperly designed, galvanic isolation may be required. The potential difference between
grounding points cause loop currents that can interfere with the transmitted signal. The Produal ISO 10 will break such current loops.
The supply voltage terminals are located on both sides of the device. The current loop power supply is available on the +V pin (max. 15 V / 20 mA).
The listed selling price is retail, for single unit sales. If you require multiple units, please feel free to contact us for a significantly better price.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24 Vacdc |
| Consumption | less than 2 VA |
| Inputs | 0...1V / 0...10V / 2...10V (100? impedance) 0...20mA / 4...20mA |
| Galvanic isolation | 500V max |
| Outputs | 0...10V / 2...10V max. 2mA 0...20mA / 4...20mA (impedance max.500?) |
| Operating conditions | 0...+50°C, non-condensing humidity |
| Dimensions | 18 x 114 x 80 mm |
