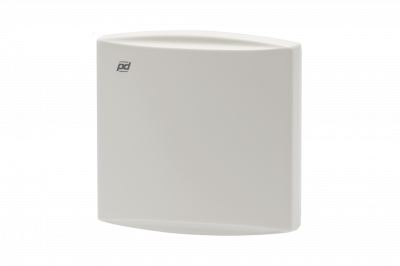

Produal KLH 100 Precision Temperature and Humidity Sensor
- Temperature and relative humidity measurement
- High accuracy relative humidity measurement
- Output 3x 0...10V (temperature + rH + control programmable analog output)
- For indoor use
| Cable length | No cable |
| Measured quantity | Temperature + humidity |
| Measuring part of the sensor | Standard |
| Designation | Wall-mounted |
| Producer | Produal |
| Measured temperature range | -30..+80°C |
Produal KLH 100 are sensors designed for simultaneous accurate measurement of temperature and relative humidity.
The control output (0 ... 10 V or 2 ... 10 V) can be set to control either one measurand or the maximum of both measurands. The sensor can be adjusted using the Produal ML-SER tool.
The sensor can optionally be equipped with an HD-R relay (24 Vac, 1 A). The relay output can also be controlled according to one measured value or all measured values. The relay output can be set using the ML-SER tool. Versions with potentiometers allowing manual adjustment of analog outputs or internal setpoints can also be supplied on request.
The selling price quoted is retail, for single unit sales. If you require multiple units, please feel free to contact us for a significantly better price.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24 Vac/dc (22...28V) < 2W |
| Measuring range - temperature Measuring range - relative humidity | 0...+50 °C 0...100 %rH |
| Accuracy - temperature Accuracy - relative humidity | ± 0,5 °C ± 2% |
| Outputs | 3x 0...10V or 2...10V |
| Coverage | IP20 |
| Dimensions | 87 x 86 x 30 mm |
