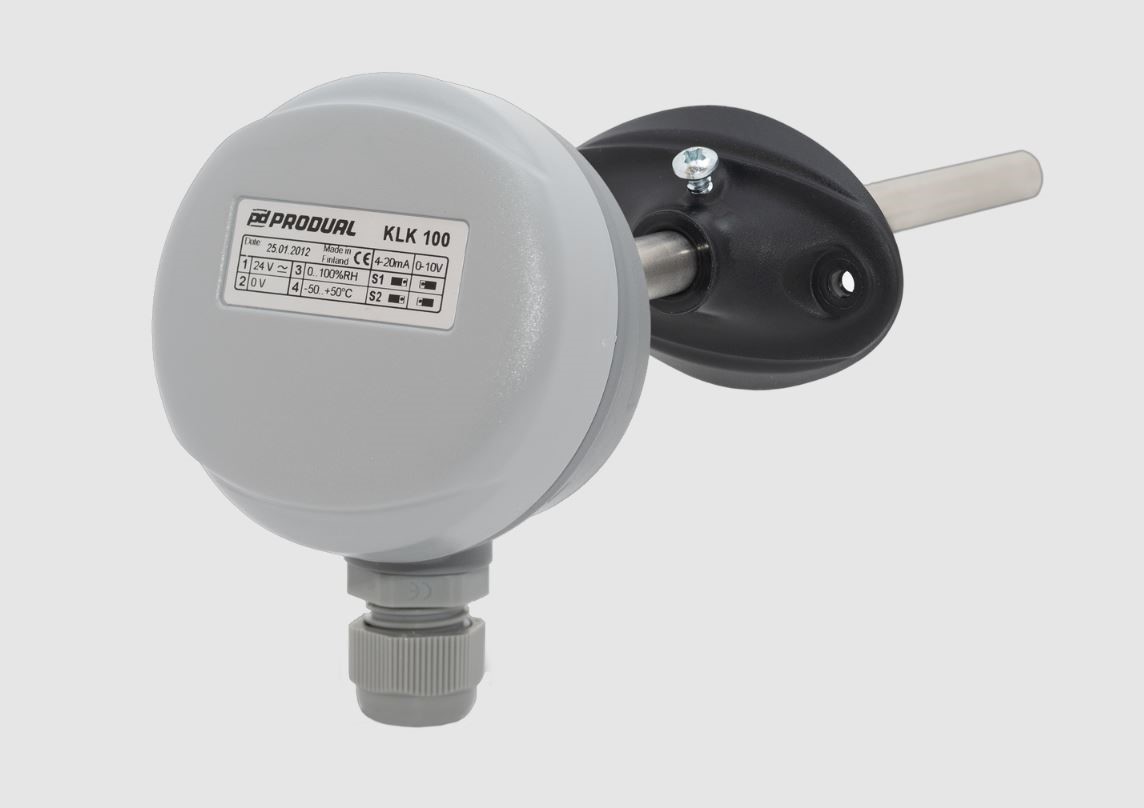

Produal KLK 100 humidity and temperature sensor for air ducts
Precision temperature and relative humidity sensor with analogue linear outputs 0...10Vdc / 4...20mA
Featured
In stock
- Measurement of relative humidity and temperature in HVAC ducts and ducts
- High precision relative humidity measurement
- High long-term stability

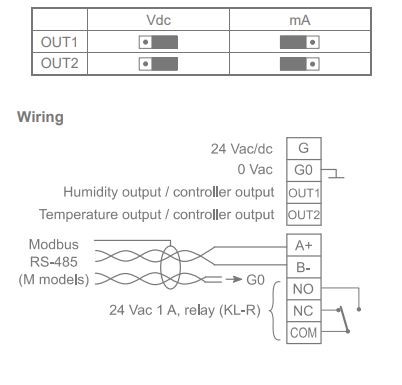

- Two adjustable outputs 0...10, 2...10, 0...5 Vdc or 4...20 mA
- RS485 ModBus version available
- SPECIAL PRICE
| Cable length | No cable |
| Measured quantity | Temperature + humidity |
| Measuring part of the sensor | Standard |
| Designation | Wall-mounted |
| Producer | Produal |
Produal KLK 100 are sensors designed for precise measurement of temperature and relative humidity in air distribution systems. The manufacturer guarantees high measurement accuracy of ±3%rH and long-term accuracy of ±0.5%rH over 24 months. The output is an analogue linear signal of 0...10, 2...10, 0...5 Vdc or 4...20mA adjustable with the ML-SER programming tool.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24 Vac/dc (15...28V), 2VA |
| Measuring range | -50...+50°C, 0...100% rH |
| Accuracy | ± 3% rH ± 0.5% rH (long-term accuracy - 24 months) |
| Output | 4...20 mA/0...10/2...10/0...5 Vdc |
| Coverage | IP54 |

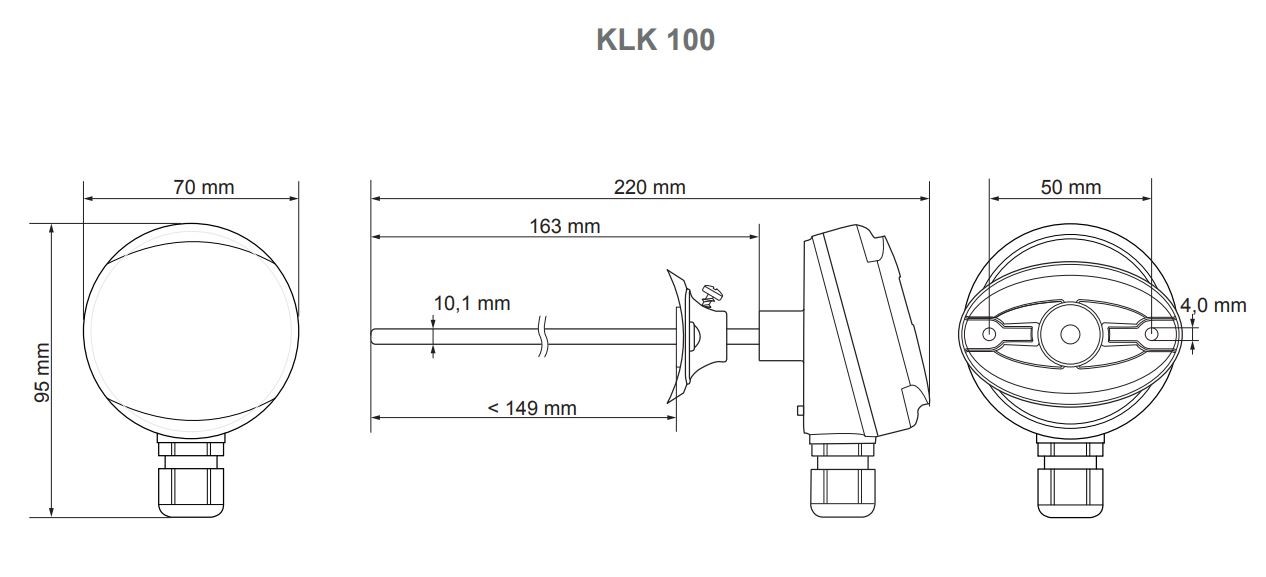

| Dimensions | 70 x 98 x 220 mm |
