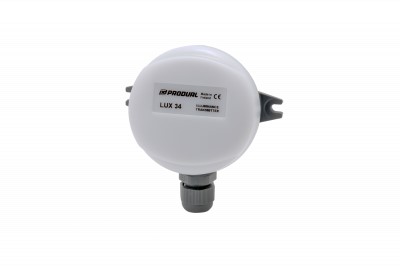

Produal Lux 34-100 industrial light sensor with adjustable range and 0-10V output
measurement of light intensity 0...100lux or 0...500lux and temperature, output 2x 0...10V
Ordered from manufacturer
- Detection of light intensity in industrial areas
- In addition to light intensity, it also measures the ambient temperature and converts to 0...10V
- Adjustable input range 0...100lux or 0...500lux
- Two analogue linear outputs 0...10V
- 24Vac/dc power supply
- IP54 protection
| Cable length | No cable |
| Temperature sensor type | Pt1000 |
| Measured quantity | Intenzita osvětlení |
| Measuring part of the sensor | Spatial |
| Designation | Wall-mounted |
| Producer | Produal |
Light level converter to standardized linear analog signal 0...10V. It is used when control is needed depending on the intensity of the illumination. Apart from light intensity, the sensor can also be used for temperature measurement. The temperature value is represented at the output by an analogue linear output of 0...10V.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24Vac/dc, <0.1VA |
| Input illumination range | 0...100lux or 0...500lux |
| Temperature input range | -50...+50°C |
| Output | 2x 0...10V |
| Coverage | IP54 |
| Dimensions | 90 x 94 x 44mm |
