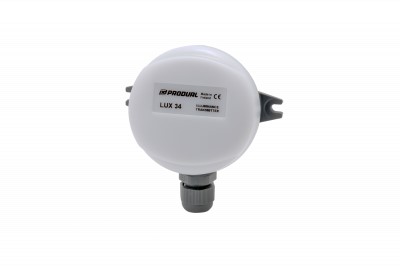

Produal Lux 34 light sensor with 0-10V output
Light intensity measurement 0...1000lux or 0...10000lux, temperature measurement, 2x output 0...10V
Over a week
- Light intensity detection
- In addition to the light intensity, it also measures the ambient temperature and converts to 0...10V
- Adjustable input illumination range 0...1000lux or 0...10000lux
- Two analogue linear outputs 0...10V
- 24Vac/dc power supply
- IP54 protection
| Cable length | No cable |
| Temperature sensor type | Pt1000 |
| Measured quantity | Intenzita osvětlení |
| Measuring part of the sensor | Spatial |
| Designation | Wall-mounted |
| Producer | Produal |
Light level converter to standardized linear analog signal 0...10V. It is used when control is needed depending on the intensity of the illumination. Apart from light intensity, the sensor can also be used for temperature measurement. The temperature value is represented at the output by an analogue linear output of 0...10V.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 24Vac/dc, <0.1VA |
| Input illumination range | 0...1000lux or 0...10000lux |
| Input temperature range | -50...+50°C |
| Output | 2x 0...10V |
| Coverage | IP54 |
| Dimensions | 90 x 94 x 44mm |
